RTD: Advanced Surface Mount with Class A Accuracy

Jan. 5, 2007

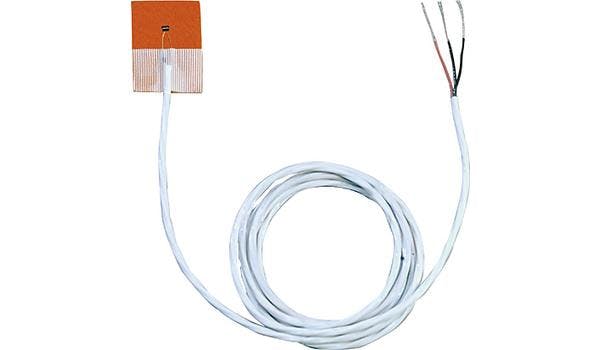

OMEGA's new SA1-RTD gets an "A" for accuracy. This surface mount temperature sensor mounts on flat or curved surfaces and provides Class A accuracy for critical temperature monitoring applications. It's based on a 2 x 2 x 0.8mm thin-film platinum RTD and supplied in PFA-insulated 3-or 4-wire configurations (connectors optional). Convenience is the key with this RTD. Installation is effortless using its self-adhesive backing; or you can permanently mount it using OMEGABOND(r) cements. Available in 1m (40"), 2m(80") or 3m (120") or custom lengths. The SA1-RTD can be tailored for use in a wide variety of applications, such as monitoring chip, heat sink and environmental temperatures in electronic devices; check piping or ducting temperatures; monitor motor and transformer core heat and test insulation capabilities. In fact, use anywhere in which surface and/or gradient temperatures need to be monitored or controlled.* Minimum/Maximum Temperature: -73°C (-100°F) to 260°C (500°F) continuous, 290°C (554°F) short term (when cemented in place) * Sensing Element: 100 ? at 0°C (32°F), temp coefficient of 0.00385 ?/?/°C (IEC60751) * Accuracy: ±0.06% at 0°C (DIN Class A) * Stability: Less than 0.2°C drift/year * Response Time: Less than 1sec. in water (63% response), less than 2sec. on a hot plate * Self-Heating Effect: 2.5 mW/°C * Lead Wire: 1 m (40"), 26 AWG, nickel-plated copper, PFA-insulated 3-wire, Color Code: Black/Black/Red
