DIN Rail Temperature/Process Controller

April 21, 2007

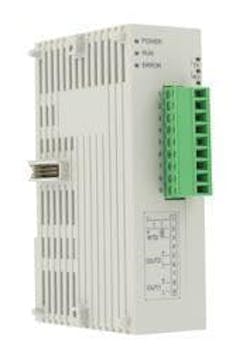

LOVE CONTROLS, a Division of Dwyer Instruments, Inc., the preferred source for your complete range of practical and affordable instrumentation, is announcing the release of its Series SCD DIN Rail Temperature/Process Controller. The DIN Rail Mount Series SCD offers multiple PID loops in a compact size. Each SCD Master controller can be combined with up to seven SCD slave controllers without any wires. Each controller has one universal input, one relay output and one user selected output. The outputs can be used for dual loop to control heating and cooling or a single loop with an alarm. The controllers support up to 64 ramp/soak actions. The SCD series controllers are programmed via a user-friendly software program via the RS-485 Modbus® Communications. Priced starting at $79.00. • Inputs: Thermocouple, RTD, DC linear voltage, and DC currents. • Supply Voltage: 24 VDC. • Power Consumption: 3 W. • Operating Temperature: 32 to 122ºF (0 to 50ºC). • Memory Backup: Non-volatile. • Control Output Ratings: Relay: Resistive load @ 250 VAC 3 A; Voltage Pulse: 12 VDC, max. output current: 40 mA; Current: 4-20 mA output; Linear Voltage: 0 - 10 VDC. • Communication: RS-485 Modbus® A-5-11/RTU communication protocol. • Weight: 2.7 oz (76.5 g). • Agency Approvals: CE, UL, cUL.
