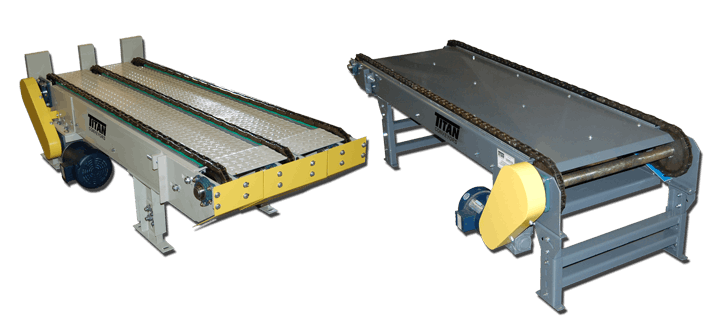

Designed to move products that a standard roller conveyor can’t, the Model 680 2-Strand Chain Conveyor features a durable formed 7 gauge steel construction and is equipped with a standard double pitch chain that provides a 2,400-lb. (1,100 kg) load capacity. The unit features a 1 hp 230/460/3/60 drive and provides a chain speed of 30 ft/min (9 m/min).


Equipment options include a heavier double-pitch chain that can carry loads up to 4,000 lb. (1,800 kg); an optional low-profile side-mounted drive; and additional chain strands that can be added to increase load capacities.

 Belt C2060or C2080 Chain Chain C2060 or C2080 chain available as an option Drive 1 hp 230/460/3/60 Frame Formed 7 Gauge Paint One Coat Industrial Enamel Speed 30 ft/min (9 m/min) Sprockets Sized to suit
