Touchscreen Oscilloscope

June 23, 2017
Saelig Co. offers the Teledyne LeCroy Oscilloscope

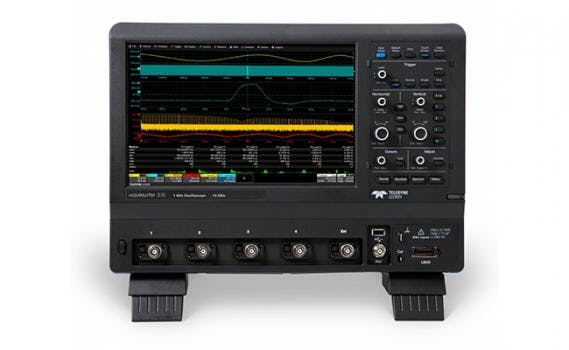

Saelig now offers Teledyne LeCroy WaveSurfer 510 oscilloscope, which combines advanced 1GHz 10GSa/s specifications including MAUI with OneTouch user interface, powerful waveform processing, as well as advanced math, measurement, and debug features, to create an engineering tool that can help quickly analyze and find the root cause of circuit problems. The 12.1" touch-screen display of the WaveSurfer 510 is the largest in its class and makes viewing intricate waveforms fast and easy. It delivers an effective sample rate of 10GSs/s simultaneously on all 4 channels with 1GHz bandwidth and 32Mpts of memory. The unit also offers a variety of serial data protocol decoders and advanced active probes.


The MS-500-36 mixed-signal option adds the ability to capture long digital records of the fastest digital signals with maximum input frequency of 500MHz for 18 channels or 250MHz for all 36 logic channels.


1 GHz

Standard Memory

16 Mpts - 32 Mpts

Max Sampling Rate

10 GS/s

Input Channels









  • 1 GHz, 10 GS/s, up to 16 Mpts/ch
  • MAUI with OneTouch
    • Designed for touch
    • Built for simplicity
    • Made to solve
  • WaveScan - Advanced Search and Find
  • LabNotebook Documentation and Report
  • Generation
  • History Mode - Waveform Playback
  • Sequence Mode Segmented Memory
  • Spectrum Analyzer Mode
  • Power Analysis Software
  • Serial Trigger and Decode
    • I2C, SPI, UART
    • CAN, LIN, FlexRay, SENT
    • Ethernet 10/100BaseT, USB 1.0/1.1/2.0, USB2.0-HSIC
    • Audio (I2S, LJ, RJ, TDM)
    • MIL-STD-1553, ARINC 429
    • MIPI D-PHY, DigRF 3G, DigRF v4
    • Manchester, NRZ
