Brushless Motors in a Compact Package

July 9, 2018

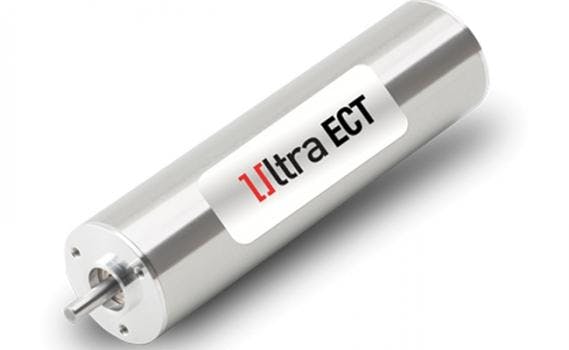

Portescap offers two additional length sizes to the ECT range of Ultra EC Brushless Slotless motors.

Two additional length sizes have been added to the ECT range of Ultra EC Brushless Slotless motors: the 35 mm 22ECT35 and the 48 mm 22ECT48. These motors, along with higher torque capacity, are light in weight and come in a compact package which helps further miniaturization of the customer application.


These compact brushless motors offer almost 50% more continuous torque over similar comparative motors without compromising on the smooth operation and long life you expect from brushless slotless motors. The 22ECT motors are specially optimized for high continuous torque at low to medium speeds, maximizing power between 10K and 20K rpm.


The motors are powered by Ultra Coil Technology and multipolar rotor design, which provides torque of up to 41.6mNm. The motor weighs almost 28% less than comparative motors and it is the lightest 4 pole motor which can be adapted in most applications.
