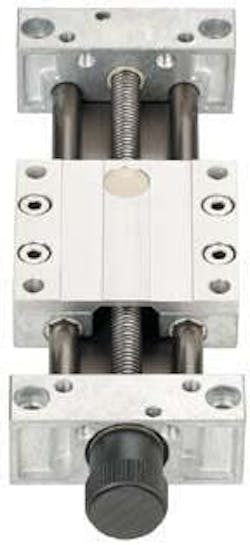

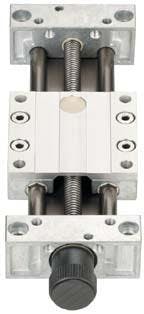

DryLin SLW Linear Anti-Backlash Leadscrew System

Oct. 6, 2009
igus leadscrew tables are pre-loaded and use anti-backlash nuts to reduce axial clearance.

DryLin SLW leadscrew tables are pre-loaded and use anti-backlash nuts to reduce axial clearance and are also fitted with DryLin W ‘turn-to-fit’ linear bearings, which offer adjustable radial clearance. In contrast to other linear shaft systems, DryLin SLW Pre-Loaded also features high torsional stiffness and is completely lubrication-free and contaminant-resistant.



The clearance on the DryLin W carriages can be adjusted with an Allen wrench. The setscrew makes an audible clicking sound with every increment of adjustment, which helps the end user achieve consistent and quick assembly every time.

 Maximum Static Radial Load up to 1,400 lb. (635 kg)
 Maximum Static Axial Load 350 lb.(158.7 kg)
 Maximum Continuous Speed  5.25 fpm
 Maximum Stroke Length 3.28 ft (1,000 mm)
 Spindle Type M8 / TR 10x2 / TR 14x4 / TR 18x4
 Rail Material Hard Anodized Aluminum 316 Stainless Available
 Carriage Material Anodized Aluminum/Chromated Zinc 316 Stainless available
 Temperature -40 to +194°F (-40 to 90°C)
 Handwheel Available
