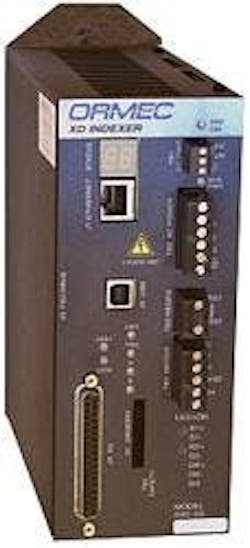

XD-Series Indexer Servo Drives Offer 32 Unique Motion Profiles, Simplified Setup and Software Tools

Jan. 22, 2010
ORMEC Systems Corporation has announced the global launch of the XD-Series, a new family of Indexer Servo Drives, providing high-reliability motion control capabilities for even the most challenging applications. The unique features of the XD-Series are built upon proven success of ORMEC's high performance, networked, multi-axis integrated motion controllers, of which thousands have been successfully installed in the field. Product philosophy behind the XD-Series centers on the critical importance of understanding application requirements and the ability to specify parameters, to achieve optimal motion control performance.           The XD-Series allows programming of 32 individual motion profiles, which can be mapped to I/O points, 1 or 2 functions per point, initiated via Modbus/TCP, and chained or looped together. The adaptable I/O, with 14 inputs and 8 outputs, can be mapped to change from position, velocity or torque modes during program execution. Motion can be synchronized with supported machine I/O, allowing for start, stop or trigger speed changes, with inputs at any point in the chain, and user-defined units for axis position speed and acceleration, further simplifying implementation. By employing an HMI or optional Fieldbus communication, the XD-Series allows motion parameter adjustments, remote commanded motion and real-time indexer status read capabilities. Communication setup may be accomplished via USB or Ethernet connections, with Modbus/TCP, Ethernet/IP, CANopen and Profibus-DP options. The XD-Series is available in 115, 230 and 460 VAC input power, with 3 to 60 amp continuous current ratings.  In addition, the XD-Series features a built-in Motor Wizard, which simplifies non-standard motor integration and enables users to quickly commission unproven motors. Once the program and motor data are loaded onto the indexer, configuration data is stored both in the indexer and on a removable memory card, greatly simplifying software transfer, duplication requirements, and hardware replacement needs. Software includes extensive support for monitoring and optimizing an application, allowing the application program to be quickly honed to perfection. ORMEC's software tools can reduce conventional setup efforts, from what typically was days, to a matter of minutes, with the supplied pre-defined "load and go" application templates. The versatility and high-performance design of the XD-Series make it uniquely capable of handling a wide range of motion control applications, including Intelligent Conveyor Control, Pick and Place, Labeling, Flying Shear, Rotary Knives, Scanning, High Speed Printing, Part Storage and Retrieval, and many others. In addition, the unique built-in features of the XD-Series allow it to support otherwise difficult application requirements, such as Tension Control, Dual Loop Feedback, Registration, Gearing and others.  * 32 independent motion profiles * Incremental and absolute Indexing, Gearing, Registration, Camming, Blended Moves, Homing, Jog and Others * Motion profiles can be mapped to I/O, initiated via Modbus/TCP, and chained or looped * Synchronize motion with machine I/O is supported; i.e. Start, Stop or Trigger speed changes with inputs at any point in the chain * I/O can be mapped to change from Position, Velocity or Torque Modes during program execution * Defining user units for the axis Position, Speed and Acceleration further simplifies implementation
