5-axis volumetric error compensation for large machine tools

March 4, 2010

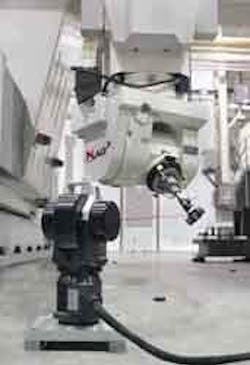

MAG introduces industry’s fastest volumetric error compensation (VEC) system capable of analyzing and correcting positioning errors in all machine-tool axes simultaneously to achieve machining accuracies never before possible on large parts. The MAG VEC methodology reduces the time to determine needed error compensations from days to hours, and integrates both linear and rotary axes into the tool point compensation process, according to Jim Dallam, MAG’s VEC product manager. Developed and proven by a government/industrial consortium, multi-axis VEC was conceived especially to improve machining accuracies for large machine tools needed to produce today’s large, monolithic and complex-shaped parts. The new VEC system received a Defense Manufacturing Excellence Award from the National Center for Advanced Technologies (NCAT) in December 2009. A Boeing official called it a “groundbreaking process” that will dramatically reduce assembly and fitting costs -- $100 million a year on large programs like the F-18 or 700 aircraft series.     VEC is offered as a standard option on new MAG machines and is available through MAG’s service group for field upgrade of legacy machines. “It gives plant management a practical and affordable way to raise a machine’s process capability, typically in less than a day, to meet the tighter accuracies required on new parts and programs in the aerospace industry,” said Dallam. “It’s one thing to hold tight tolerances over short distances along a linear axis, but it's far more difficult along all arbitrary contours and orientations within a volume encompassing several meters. Multi-axis VEC gives management the ability to run a large high-value part with confidence, without today’s worries, stops, checks and rework.”   Multi-axis VEC collectively treats all of a machine’s degrees of freedom that affect tool point positioning, unlike conventional calibration methods that sequentially examine machine motion one axis at time, Dallam explained. Conventional approaches to volumetric compensation are generally limited to three linear axes and the associated total of 21 potential motion error sources. However, a typical five-axis machine with linear and rotary axes can have 43 potential error sources, not just 21. MAG’s multi-axis VEC system compensates for all these, and even more, in machines with unique and more complex multi-axis configurations, he noted.“Traditional piecemeal compensation of one axis at a time does not consider axis kinematic relationships and their effect on volumetric accuracy,” he said. “MAG’s VEC solution is unique in considering the full interrelated effects resulting from the kinematic stack-up of the machine tool axes. This holistic methodology enables volumetric error compensation for every point orientation and path combination inside the work volume.”The multi-axis methodology originated in Boeing R&D, St. Louis MO, and uses innovative laser technology from Automated Precision, Inc. (API), Rockville MD. A laser source, the T3 Laser Tracker, is placed in the work piece position. It directs the laser beam to the Active Target, mounted in the machine tool’s spindle. These interact to maintain a metrology “beam lock” during the volumetric calibration event. To perform a VEC event, an NC program positions the Active Target to a cloud of some 200 points representing a series of statistically randomized multi-axis “poses” within the work envelope. The same NC program is run three times, Dallam explained, first with the Active Target at a long tool length, then twice again at a short tool length. The 200 commanded and measured positions from the first two runs are mathematically combined to establish each tool axis vector orientation and the third run gives a measure for repeatability. Automated software processes all pose/point data as simultaneous polynomial equations to determine volumetric compensation based on the kinematic error model of the machine. The compensation solution is then entered into the control, where “compile cycle” technology integrates the compensations into real-time CNC path control algorithms. The volumetric accuracy compensations work in conjunction with, and on top of, traditional, underlying single axis and cross-axis comps, said Dallam.     “This is true game-changing technology, yet in a practical, efficient, and easy-to-implement package,” he stressed. “Measurements are automated within a single coordinate system using laser tracker technology, a simple metrology tool that does not require extensive training to use. Calibration is performed in just a few hours in a single setup, compared to conventional methods that require multiple setups and several days of time, yet fail to capture volumetric axis interactions.”
