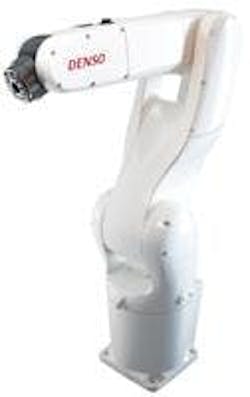

The new DENSO VS-Series six-axis articulated robots offer the world’s highest speed and precision for robots of their class, with cycle times from 0.37 to 0.33 sec. and repeatability from ±0.03 to ±0.02 mm. Reaches are from 500 to 900 mm and payload capacities from 4 to 7 kg.

The VS robots are also extremely flexible, with an even more compact design than previous models, including ultra slim arms to facilitate integration and a new optional bottom-side cable connection that saves valuable floor space. The robots can be mounted on the floor, ceiling or wall with no special hardware needed.

A new internal wiring option allows users to easily connect Gigabit Ethernet devices and servo grippers directly to the robot flange, preventing cables from becoming tangled or interfering with peripheral equipment.

In addition to their standard IP40 protection level, a new IP67 dust- and splashproof protection option allows the robots to resist cutting chips and high-pressure washing, extending their application range. ANSI and CE safety compliance allows global deployment.

Typical applications include assembly, dispensing, inspection, machining, machine tending, material handling, material removal, packaging, pick and place, surface finishing and test handling.

“Our VS-Series robots have always been well-known in the industry for their class-leading performance,” said Peter Cavallo, robotics sales manager, DENSO Sales California. “Now our new VS-Series models raise the performance bar even higher, with faster speeds, a more compact design and greater flexibility.”

  • cycle times from 0.37 to 0.33 sec
  • ultra slim arms
  • reaches are from 500 to 900 mm
  • payload capacities from 4 to 7 kg
