Direct-Aire Mini Pneumatic Press

July 11, 2011

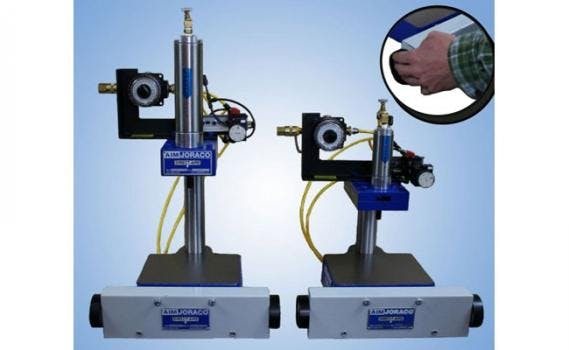

The DIRECT-AIRE Mini, at approximately 60 lb., weighs even less than AIM JORACO’s standard benchtop units and includes unique features that make it an attractive choice for many small-scale applications.


The press features a straight pneumatic cylinder for applications requiring full force over the entire stroke. It's offered with an EZ-Dial pressure regulator, adjustable dwell timer, adjustable shut height, and 2-hand anti-tie down Actuator. Suitable for a wide range of manual and semi-automatic assembly operations, the Mini provides 50 to 300 pounds of constant force and is offered with optional custom stroke and/or open heights.

  • 3/8" Threaded Ram
  • 4“x5” Working Area
  • Speed Control (SCM), Individually Control Ram Up & Down Speed
  • Synchro-Sig (SS-PB-18), Anti-Tie Down Controller
