Multi-Passage Rotary Unions

Sept. 7, 2016
For power, fluid, and data transfer

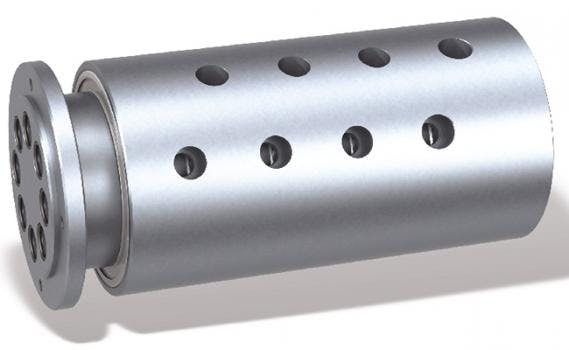

Multi-passage rotary union line for power, fluid, and data transfer features standard configurations designed to meet the needs of the most common industrial and commercial applications requiring a rotary sealing device with 2 to 12 passages.



Multi-passage rotary unions provide sets of seals between stationary connections and rotating equipment, such as a drum, index table, clutch or spindle. The multiple, independent passages permit the flow of the same or different media into and out of rotating equipment. In most cases, each passage requires isolation from other passages especially when the different media cannot mix or they operate under different pressures.

  • Flow Passages: 2 to 12
  • Media Types: Air, Coolant, Oil, Steam, Water
  • Passage Sizes: 1/3, 1/4, 3/8, 1/2 in.
  • Connection Type: NPT, BSPT, G/BSP (ISO 228), O-ring
  • Pressure (Max): 5,000 psi (345 bar)
  • Temperature (Max): 220ºF (105ºC)
  • Speed (Max): 500 RPM
  • Material Type: Steel, Stainless Steel, Aluminum, Brass
  • Seal Type: Mechanical or DuraSeal seal technology
