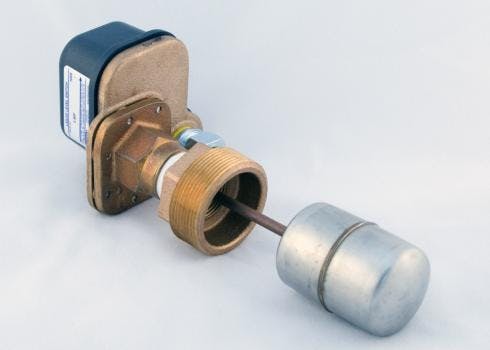

L-5 Level Switch

Aug. 12, 2011

Specific Gravity Compensating

  • Featuring continuously adjustable float buoyancy control to allow use in fluids with specific gravity down to 0.6
  • Continuous buoyancy control allows switch activation at oil/water interface
  • Consult factory for other bicomponent fluid interface systems.

Wetted Surfaces:

Brass, phosphor bronze, 304 stainless steel and EPDM elastomer seal. Hypalon and Viton elastomer seals are available on special order.

Typical Working Fluids:

  • Contaminated ground water
  • Hydrocarbons
  • Machine cutting oils
  • Rusty coolant water
  • Sewage
  • Waste water
  • 15 amp, 120 or 230 VAC, SPDT or DPDT switch action
  • Gold Cross Bar Dry Circuit Computer/PLC Interface SPDT Switch Model also available
  • May be used in hazardous areas when used with intrinsically safe relays.
  • Temperature to 180°F
  • Pressure to 300 psig
  • Available in single float and double float models
  • For use in particle contaminated fluids.
  • Non-Magnetic
  • Horizontal Mounting Only
  • High/Low Liquid Level Alarm
  • Solenoid Valve On/Off Control
