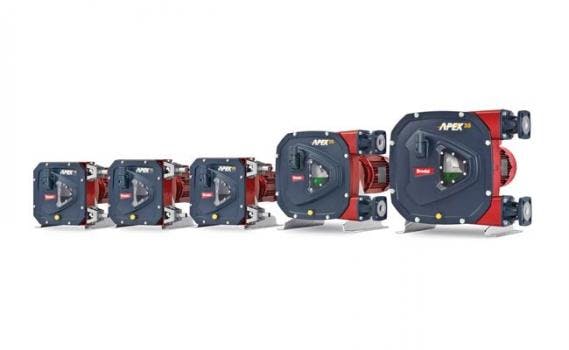

Bredel APEX Hose Pumps

Bredel's APEX range of pumps is designed to suit all dosing, metering, and transfer duties between 0.7 to 1,638 gal/h (2.6 to 6,200 L/h). APEX hose pumps have no expensive wearing components such as seals, valves, membranes, stators, rotors or glands to maintain.



Suited for handling difficult fluids—corrosive, viscous, shear-sensitive, gaseous, crystallizing or even fluids with a combination of these properties—the pumps handle pressures up to 116 psi (8 bar) and speeds up to 160 rpm.



While APEX is best for low-transfer applications, the pumps are easily upgraded without having to buy a new pump. APEX models are three pumps in one, with a single pump body adjustable for 5 hose sizes (0.4, 0.6, 0.8, 1.1, and 1.4  in. (10, 15, 20, 28, and 35 mm)).

 APEX 10 APEX 15 APEX 20APEX 28APEX 35 Flow Range 103 gal/h
(390 L/h) 203 gal/h
(770 L/h)317 gal/h
 (1,200 L/h) 911 gal/h
(3,450 L/h)1,638 gal/h
(6,200 L/h) Min. Torque 425 in-lb
(48 Nm) 505 in-lb
(57 Nm) 1,330 lb-in
(150 Nm)  2,040 lb-in
(230 Nm)  Max. Pressure116 psi (8 bar) Operating Speed140 rpm160 rpm140rpm Product Temp. Range14 to 176°F (10 to 80°C) Ambient Temp. Range -4 to 113°F (20 to 45°C)
