Explosion Proof Paint Spray Booth LED Lighting - 2 Foot, 2 Lamp Fixture - 50' Cord Pin + Sleeve Plug

Jan. 23, 2013

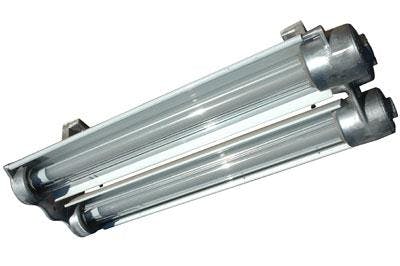

The Magnalight EPL-24-2L-LED-50-EP Explosion Proof LED Light Fixture is U.S./Canada U.L. approved Class 1 Division 1, Class II Division 1, has a T6 temperature rating and is a superior lighting solution for areas where flammable chemical/petrochemical vapors or pulverized dust exist or have the potential to exist.

This 2 foot long, 2 LED tube, explosion proof light fixture is ideal for use in locations requiring powerful yet compact hazardous location lighting that will improve overall illumination levels and light quality while reducing operating costs.

The EPL-24-2L-LED-50-EP is equipped with Magnalight’s specially designed LED T-series bulbs which produce 15% more illumination at 8 feet as compared to standard T8 lamps when measured with an Extech light meter. Our LED-T series bulbs are visibly brighter than standard T8s and have consistently surprised many of our customers with their unexpectedly high light output levels. This 2 LED bulb explosion proof fixture is lighter in weight, has a slimmer profile, and produces more light than traditional explosion proof fluorescent fixtures. The 2 foot long T17 LED tube design bulbs included with this unit are rated at 50,000+ hours of service life, which is nearly twice as long as T5 bulbs.

The Magnalight 2 foot Explosion Proof LED light fixture is equipped with a 50 foot SOOW cord and terminated in an Explosion Proof Pin and Sleeve Arktite Plug. This fixture carries a T6 temperature rating and is U.L. approved Class 1 Division 1, Groups C and D, Class 1 Division 2, Group A,B,C and D, and Class II, Division 1 and 2, Groups E, F and G.

Specifications / Additional Information

EPL-24-2L-LED-50-EP Explosion Proof U.L. Ratings
UL Listing: United States - Canada Class 1 Division 1, Groups C and D
Dimensions: W-11.25"  L-27.5"  H-8.5 " Class 1 Division 2, Group A,B,C,D
Weight: 32 Lbs Class II, Division 1& 2, Groups E, F G
Total Watts:  30 watts UL 844, 924
Voltage: Multi- 120V-60hz  220V-50hz  240V-60hz  277V-60hz UL 1598 Marine Type
Low Voltage (Optional): 12-24V DC UL 595 Outdoor Marine Type (Saltwater)
LED Lamp Life Expectancy: 50,000+ Hours UL Certified- U.S./Canadian Safety Standards
Efficiency: 90 Lumens per Watt
Ambient  Operating Temp Range: -30 C to 85 C

Operating Temp Rating: T6 Rated

Minimum Operating Temp: -30 C

Maximum Case Temp: 90 C

Beam Angle: 150 degrees Special Orders- Requirements
Color Temp: 5300K- Contact us for special requirements
Mounting: Bracket Standard - Pendant Optional
Wiring: 50' SOOW cable - CPP516 Pin and Sleeve Plug
Warranty: YES- 5 Years*
U.L Approval: U.S Certificate  Canada Certificate

*5 year warranty replacement on this LED light (or LED bulbs for light fixtures with removable LED bulbs). After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics’ Magnalight at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics Magnalight will provide a return label via email to the customer. When the failed light is returned, Magnalight will ship a new replacement.
