Surface Mount Explosion Proof, Waterproof Fluorescent Lights - T12 Very High Output - Oil Rigs - 2 L

Jan. 23, 2013

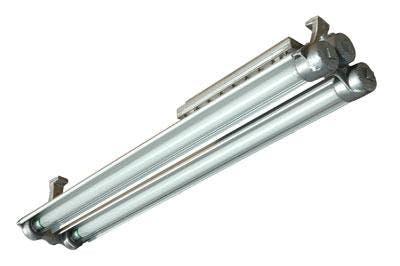

The Magnalight EPL-48-2L-T12VHO Explosion Proof Fluorescent Light Fixture is U.S./Canada U.L. approved Class 1 Division 1 and  Class 1 Division 2 for hazardous locations where flammable chemical/petrochemical vapors exist or have the potential to exist. The unit carries a T6 temperature rating, it is also approved for Paint Spray Booths.

The EPL-48-2L fixture is a 4 foot long, 2 lamp, UL listed Class 1 Division 1 and Class 2 Division 1 & 2 explosion proof fluorescent light which is also approved for use in hazardous locations. This T6 temperature rated fixture comes standard with two T12VHO fluorescent lamps.  Optional lamp choices include T5HO, T12HO, and T8. The lamps are protected by heat and impact resistant Pyrex tubes and the fixture is constructed of copper free aluminum alloy. The lamp reflectors are corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This fixture is equipped with a magnetic ballast configured to run on 120 Volts AC OR 277 Volts AC. The EPL-48-2L-T12VHO provides operators in hazardous locations with a reliable and affordable lighting solution that provides the best explosion proof protection available without sacrificing light quality or fixture durability.

Specifications / Additional Information

EPL-48-2L Low Profile Explosion Proof Light U.L. Ratings
UL Listing: United States - Canada Class 1 Division 1, Groups C and D
Dimensions: W-11.25"  L-52"  H-8.5 " Class 1 Division 2, Group A,B,C,D
Weight: 65 Lbs UL 595 Outdoor Marine Type (Saltwater)
Total Watts: 220 watts* UL 844, 924
Voltage:120V OR 277V UL 1598 Marine Type
Total Lumens: T12VHO Bulbs 7,000 Class II Division 1 and 2, Groups E,F,G
Lamp Life Expectancy: T12VHO Bulbs 7,000 Hours UL Certified Canadian Standards
Ambient Operating Temp Range: -20 C to 70 C* California Title 24 Compliant
Operating Temp Rating: T6 Rated
Color Temp: varies with bulb choice Special Orders- Requirements
Mounting:Surface Standard - Pendant Optional Contact us for special requirements
Wiring Hub: 1/2 inch threaded
Minimum Operating Temp: -30 C
U.L Approval: U.S Certificate  Canada Certificate
Ballast Type: Magnetic Ballast
Beam Angle: N/A
Maximum Case Temp: 90 C

*Wattage totals are lamps only and may vary with different lamps.
*Temperatures above 65 degrees C will diminish ballast life from 5 years to 3 years).

*5 year warranty replacement on this LED light (or LED bulbs for light fixtures with removable LED bulbs). After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics’ Magnalight at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics Magnalight will provide a return label via email to the customer. When the failed light is returned, Magnalight will ship a new replacement.
