The Magnalight EPL-24-4L-LED is U.S./Canada U.L. approved Class 1 Division 1 - Class II Division 1 and 2, has a T6 temperature rating and is an ideal lighting solution for areas where flammable petrochemical vapors and/or pulverized dust exist or have the potential to exist.

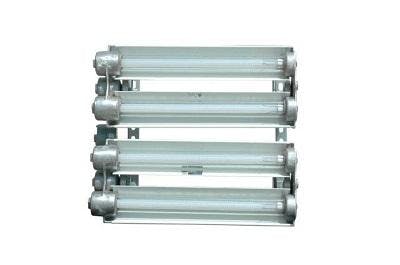

This 2 foot long 4 LED tube fixture is ideal for operators seeking a top quality explosion proof light that will reduce operating costs, improve lighting quality and reduce downtime incurred from frequent servicing intervals.
The EPL-24-4L-LED is equipped with Magnalight’s specially designed LED T-series bulbs which produce nearly 15% more light than standard T8 bulbs. Our new LED-T series bulbs are visibly brighter than standard T8s and have consistently surprised many of our customers with their unexpectedly high light output levels. This 4 LED bulb explosion proof fixture is lighter in weight, has a slimmer profile, and produces more light than traditional explosion proof fluorescent fixtures. The 2 foot long LED tube design bulbs included with this unit are rated at 50,000 hours of service life, which is twice as long as T8 bulbs.
This fixture carries a T6 temperature rating and is U.L. approved Class 1 Division 1, Groups C and D, Class 1 Division 2, Group A,B,C and D, and Class II, Division 1 and 2, Groups E, F and G.
| EPL-24-4L-LED Explosion Proof | U.L. Ratings |
| UL Listing: United States - Canada | Class 1 Division 1, Groups C and D |
| Dimensions: W-22.50" L-27" H-8.5 " | Class 1 Division 2, Groups A,B,C,D |
| Weight: 57 Lbs | Class II, Division 1&2, Groups E,F,G |
| Total Watts: 60 watts | UL 595 Outdoor Marine Type (Saltwater) |
| Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz | UL 1598 Marine Type |
| Low Voltage (Optional): 12-24V DC | UL Certified- Canadian Standards |
| LED Lamp Life Expectancy: 50,000+ Hours | UL listed Paint Spray Booth Use |
| Efficiency: 90 Lumens per Watt | UL 844 924 |
| Ambient Operating Temp Range: -30 C to 85 C Operating Temp Rating: T6 Rated | |
| Beam Angle: 150 degrees | Special Orders- Requirements |
| Color Temp: 5300K- | Contact us for special requirements |
| Mounting: Unistrut | |
| Wiring Hub: 1/2 inch threaded | |
| Warranty: YES- 5 Years* | |
| U.L. Approval: U.S Certificate Canada Certificate | |
| *5 year warranty replacement on this LED light (or LED bulbs for light fixtures with removable LED bulbs). After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics’ Magnalight at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics Magnalight will provide a return label via email to the customer. When the failed light is returned, Magnalight will ship a new replacement. |
