Class 1 Division 2 Fluorescent Light - 4 foot 2 lamp - UV bulbs - 8 foot cord

Jan. 23, 2013
The Magnalight Hal-48-2L-UV-8 Hazardous Location UV Fluorescent Light Fixture is U.S./Canada U.L. approved Class 1 Division 2 . This fixture uses a special ballast and bulb combination to produce ultraviolet light. This lamp is T4C temperature rated and ideal for hazardous locations where UV lamps are used to cure coatings and adhesives or as germicidal agents.

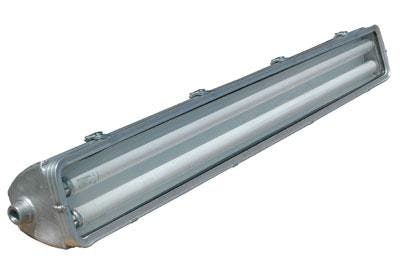

The Hal-48-2L-UV-8 fixture is a 4 foot long, 2 lamp, UL listed Class 1 Division 2 hazardous location fluorescent light that emits light in the ultraviolet spectrum. The Hal-48-2L-UV-8 can be configured to produce UVA or UVC light which is typically used for curing coatings or adhesives, pest management or in germicidal applications. The lamps are protected by an aluminum framed hinged glass door secured with four turn latches and the fixture is constructed of copper free aluminum alloy. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This fixture, like our other UV lights operates on 120 VAC only.

The HAL-48-2L-UV-8 is equipped with an 8 foot cord and provides operators in hazardous locations with a reliable and durable UV lighting solution for open areas where flammable chemicals and vapors may occasionally be present.

Specifications / Additional Information

HAL-48-2L-UV-8 Hazardous Location Ultraviolet U.L. Ratings
UL Listing: United States - Canada Class 1 Division 2, Groups A,B,C,D
Dimensions: W-7"  L-49 3/4"  H-6 1/8 " UL 595 Outdoor Marine Type (Saltwater)
Weight: 33Lbs UL 1598 Marine Type
Total Watts:  N/A* UL approval- U.S/ Canada Standards

California Title 24 Compliant
Voltage: 120V-60hz
Total Lumens: T8 UV Bulbs N/A
Lamp Life Expectancy: T8 UV Bulbs   N/A
Efficiency: T8 UV Bulbs N/A
Operating Temp Range: T4C Rated -30 C to 70 C
Beam Angle: N/A Special Orders- Requirements
Color: Ultraviolet- 400nm-315nm,  280nm-100nm  Contact us for special requirements
Mounting: Bracket Standard  Sliding Bracket Optional
Wiring: 8 Foot Cord
U.L Approval: U.S Certificate  Canada Certificate
Made in the USA

*Wattage totals vary with different lamp options.
