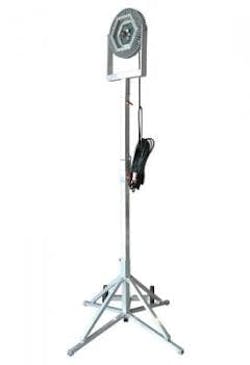

The EPL-TP-1x150LED-100-B Explosion Proof LED Light from Magnalight is rated Class 1 Division 1 Group B for Hydrogen and uses a 16 inch LED light head to produce 10,000 lumens of light while drawing only 150 watts.
The EPL-TP-1x150LED-100-B is a quadpod mounted explosion proof LED light and provides 8,000 square feet of work area coverage with 10,000 lumens of light output. This portable LED quadpod light has a removable LED light head measuring 16 inches in diameter mounted on top of a two wheeled steel quadpod for easy positioniong of the unit from one area of the workspace to another. The LED light head on this unit produces a wide flood pattern of light that is ideal for illuminating enclosed areas such as tanks and containers and is suitable for hazardous locations where flammable vapors, gases and dusts may be present.
A Class 1 Division 1 Group B approval allows this light to be used in locations where hydrogen gases may be present as well, giving this light suitability for use over a wider range of hazardous locations.
| EPL-TP-1x150LED-100-B Explosion Proof LED Quadpod | Quick Summary |
| UL Listing: United States | Class 1 Division 1, Groups C and D |
| Dimensions: 16" Light head - 4' to 12' Extendible Quadpod | Class 1 Division 2, Group A,B,C,D |
| Weight: 50 Lbs | Class II, Division 1 - 2, Groups E,F,G |
| Total Watts: 150 watts | Class 1 Div 1, Group B - Hydrogen |
| Voltage: 120V-60hz 220V-50hz 240V-60hz 277V-60hz | ECP1523 Class 1 explosion proof plug |
| LED Lamp Lumens: 10,000 | |
| LED Lamp Life Expectancy: 60,000 Hours | |
| Mounting: Non Sparking Wheeled Aluminum Quadpod | |
| Wiring: 100 feet SOOW Cord Explosion Proof Straight Blade Plug | |
| Operating Temp Range: T4A Rated -40C to 60C | Special Orders- Requirements |
| Beam Lux: 8500@ 1 Meter 1250@ 3 Meters | Contact us for special requirements |
| Color Temp: 6000K |
