The EPL-24QP-1X4-250 Explosion Proof Tank Light from Magnalight is rated Class 1 Division 1 Groups C & D and uses a 400 watt Metal Halide light head to produce 36,000 lumens of light capable of illuminating an area 20,000 square feet in size.

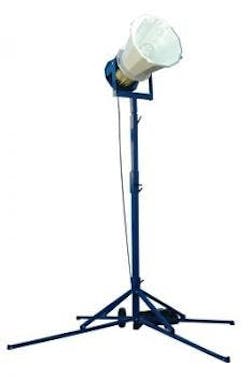

The EPL-24QP-1X4-250 is a quadpod mounted explosion proof tank light and provides 20,000+ square feet of work area coverage with 36,000 lumens of light output. This portable quadpod light has a removable light head measuring 23 7/8 inches in diameter so it can fit into 24 inch man ways for cleaning vessels in the petrochemical industry or cleaning out fuel cells in the marine industry. The metal halide lamp on this unit produces a wide flood pattern of light capable of reaching 200 feet in length that is ideal for illuminating enclosed areas such as tanks and containers and is suitable for hazardous locations where flammable vapors and gases may be present.
| EPL-24QP-1X4-250Explosion Proof Quadpod | Quick Summary |
| UL Listing: United States | Class 1 Division 1, Groups C and D |
| Dimensions: 23 7/8" Light Head - 4.5' to 9' Extendible Tripod | Class 1 Division 2, |
| Weight: 145 Lbs | ECP1523 Class 1 plug |
| Total Watts: 400 watts | UL Certified U.S. Standards |
| Voltage: 120V - 240V | |
| Lamp Lumens: 36,000 | |
| Lamp Life Expectancy: 20,000 Hours | |
| Mounting: Non Sparking Wheeled Aluminum Quadpod | |
| Wiring: 200 feet SOOW Cord - Explosion Proof Straight Blade Plug | |
| Operating Temp Range: T3 A Rated | Special Orders- Requirements |
| Beam Lux: 8500@ 1 Meter 1250@ 3 Meters |
