Explosion Proof Red Green Light - Class 1 & Class 2 Division 1 Traffic Light

Jan. 24, 2013

Made in the USA

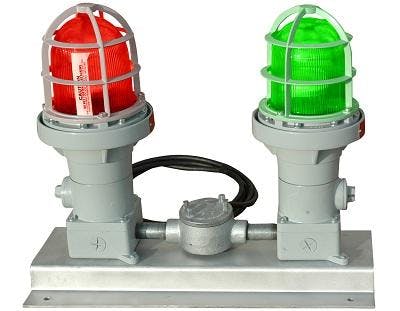

The EPL-TL-2X10W-C Class 1, Division 1 and Class 2 Division 1 LED Traffic Light from Magnalight is also approved for use in wet locations and marine environments. This waterproof LED equipped light is designed for routing traffic in industrial refueling stations and process status indication in manufacturing facilities .

The EPL-TL-2X10W-C explosion proof LED traffic light from Magnalight is an ideal indicator lighting solution for for industrial refueling stations and manufacturing facilities. The light housings are constructed with a polyester powder coated copper free aluminum casting that can withstand 1490 pounds PSI hydrostatic pressure. The mounting plate is also made from aluminum and can be custom built to customer specifications. This explosion proof red and green indicator light has a 50,000 hour operational life and is available in 120-240 VAC and 12/24 VDC configurations for standard or low voltage operation.

EPL-TL-2X10W-C U.L Ratings
Lamp Type: LED Class 1, Division 1 Groups C,D
Colors: Red and Green Class 2 Division 1 Groups E,F
Watts: 10 Watts Per Lamp - 20 Total Class III Groups E,F,G
Voltage: 120 Volts 60hz AC, 240 Volts AC, 24 Volts DC, and 12 Volts DC
Lighting Configuration: Steady Burn
Mounting: Ceiling, Wall, Flat Surface -40C to 85C Operating Temp
Temp Rating: T2D
Wiring: Two Cords with Straight Blade Plugs
Lamp Life: 50,000+ Hours
Mounting: Predrilled Aluminum Base
