Explosion Proof Low Profile Linear LED light - Class 1 Div 1 - 4 ft - 120-277VAC 50/60hz

Jan. 24, 2013

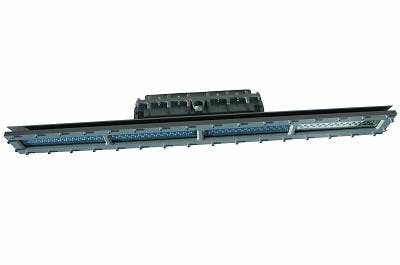

The Magnalight EPL-48-100LED Explosion Proof LED Light Fixture is U.S./Canada U.L. approved Class 1 Division 1 for areas where flammable chemical/petrochemical vapors exist or have the potential to exist. This explosion proof LED light has a T4A temperature rating and is designed for low profile mounting to make the maximum use of available space.

The EPL-48-100LED is comprised of solid state design LEDs, making this explosion proof led fixture highly resistant to shock and vibrations and cooler running than comparable incandescent and HID light fixtures. This 100 Watt LED fixture draws less than one amp on a 120 Volt AC power system while producing 7,000 lumens of bright white light, producing efficiency that reduces power consumption and operating costs without compromising light output or quality.

EPL-48-100LED Explosion Proof U.L. Ratings
UL Listing: United States - Canada Class 1 Division 1, Groups C and D T4A
Dimensions: W-4.83" L-47.46" H-6.15 " UL 844
Weight: 26 Lbs UL 1598 Marine Type
Total Watts: 100 watts UL 8750
Voltage: Universal 120-277VAC 50/60 hz IP66 Rated
LED Lamp Life Expectancy: 100,000+ Hours NEMA 4X
Lumens: 7,000/ 70 Lumens Per Watt CSA 22.2 No. 137-M81
Ambient Operating Temp Range: -40 C to 65 C
Operating Temp Rating: T4A Rated
Minimum Operating Temp: -40 C
Maximum Case Temp: 65 C
Beam Angle: 150 degrees
Color Temp: 5000K
Mounting: Surface Standard - Pendant Optional Special Orders- Requirements
Wiring Hub: 1/2 inch threaded Contact us for special requirements
Warranty: YES- 5 Years*
