Explosion Proof LED Lights for Paint Booths on Aluminum Upright Cart with Wheels

Jan. 24, 2013

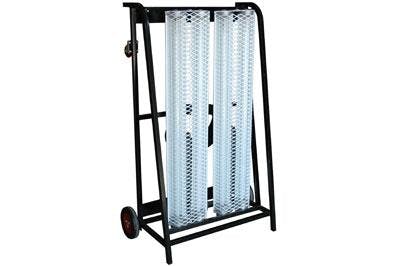

The Magnalight EPLUC-48-4L-LED Upright Explosion Proof LED Light Cart is U.S./Canada U.L. approved Class 1 Division 1, Class II Division 1 and offers exceptional lighting versatility and convenience with effective protection to operators working in hazardous locations. Solid rubber tires, uni-directional caster wheels, and a fold down handle gives this light excellent mobility and versatility and makes it an ideal choice for operators who need an effective and safe lighting solution that can be easily applied over a wide variety of applications.

The EPLUC-48-4L-LED aluminum upright explosion proof cart is UL listed Class 1 Division 1 and Class 2 Division 1 & 2 and offers the ability to quickly and easily add light wherever it is needed without the need for special considerations of hazardous conditions beyond adhering to the normal rules of ratings and classifications. This unit incorporates a pair of our highly effective Magnalight EPL-48-2L-LED explosion proof fixtures equipped with four LED tube lamps into a mobile cart platform equipped with wheels. The EPLUC-48-4L-LED is equipped with Magnalight’s specially designed LED T-series bulbs which produce nearly 15% more light than standard T8 bulbs. The platform is constructed of corrosion resistant aluminum alloy, has non sparking casters, and includes a Class 1 Div 1 explosion proof switch with 50 foot of SOOW electric cable and explosion proof plug as well.

EPLUC-48-4L-LED Explosion Proof U.L. Ratings
UL Listing: United States - Canada Class 1 Division 1, Groups C and D
Dimensions: W-24"  L-58"   H-25.5" Class 1 Division 2, Group A,B,C,D
Total Unit Weight: 180 Lbs UL 595 Outdoor Marine Type (Saltwater)
Total Watts: 96 watts UL 844, 924
Voltage: Multi- 120V-60hz  220V-50hz  240V-60hz  277V-60hz: UL 1598 Marine Type
Total Lumens:  8,640 Class II Division 1- 2, Groups E,F,G
Lamp Life Expectancy:  50,000 Hours UL Certified Canadian Standards
Efficiency: 90 Lumens per Watt UL listed for Paint Spray Booths*
Operating Temp Range: T6 Rated* -30 C to 85C
Minimum Operating Temp: -30 C
Maximum Case Temp: 90 C
Color Temp: 5300K
Mounting: Portable Upright Cart with Adjustable Brackets
U.L Approval: U.S Certificate Canada Certificate
