Explosion Proof Light - Portable Cart - 24 Inch - 400 Watt Metal Halide - Class 1 & Class 2 Div 1

Jan. 24, 2013

The Magnalight EPL-24C-1X4 Explosion Proof Portable Tank Light from Magnalight is rated Class 1 Division 1, Groups C & D and uses a 400 watt metal halide lamp to produce 75,000 lumens of light capable of illuminating 20,000 square feet of work area.

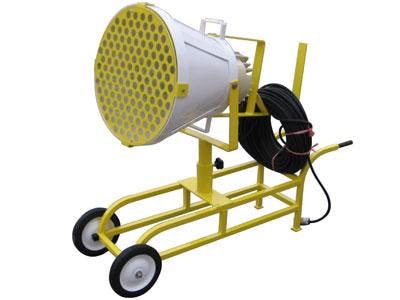

The EPL-24C-1X4 explosion proof portable tank light is U.L. approved Class 1, Division 1 for Groups C and D and provides 20,000 square foot of coverage with a 75,000 lumen light output. This unit consists of a 23 7/8 inch diamter 400 watt metal Halide lamp mounted on top of an aluminum cart with solid rubber wheels and provides a portable and easily mobile source of hazardous location illumination. Often simply referred to as a “tank light”, this unit is popular for use in tanks due to its ability to be passed through conventional 24 inch manhole openings such as those found in petrochemical containers and ship storage tanks. This 23 7/8” diameter metal halide lamp fixture is designed specifically for use in tank cleaning and maintenance operations as an alternative to other less convenient lighting options such a string or drop lights.

EPL-24C-1X4 Explosion Proof Tank LightQuick Summary
UL Listing: United States Class 1 Division 1, Groups C and D
Dimensions: 23 7/8" Light head- Unit height- 3' Feet Class 2 Div 1 & 2, Groups E, F, G
Weight: 135 Lbs Class 3, Division 1 & 2
Total Watts: 400 watts UL Certified U.S. Standards
Voltage: 120 volts @50/60hz or 230/240 VAC 75,000 Lumens- 20,000 Sq Ft Coverage
Operating Temp Range: T3B Rated   ECP1523 Class 1 explosion proof plug
Lamp Life Expectancy: 20,000+ Hours (Metal Halide Average) T3B Temp Rating
Mounting: Non Sparking Aluminum Cart Confined Area Suitable
Wiring: 250'14/3 SOOW Cord- ECP1523 Explosion Proof   Plug 400 Watt Metal Halide
