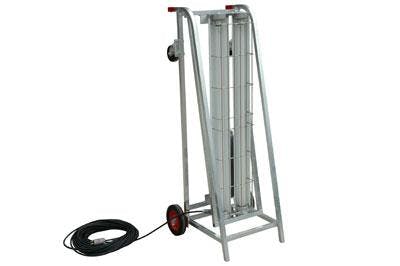

Explosion Proof Paint Spray Booth Light on Dolly Cart with Wheels - 4 foot 2 lamp

Jan. 24, 2013

The Magnalight EPLCD-48-2L Explosion Proof Paint Spray Booth Light on Dolly Cart is U.S./Canada U.L. approved Class 1 Division 1, Class II Division 1 and offers a versatile lighting solution for applications requiring exceptional work area lighting coverage.

The EPLCD-48-2L dolly cart mounted explosion proof light is UL listed Class 1 Division 1 and Class II Division 1 & 2 and offers operators the ability to quickly and easily add a full power light wherever it is needed. This unit incorporates a Magnalight EPL-48-2L explosion proof fixture equipped with two F54-T5/850/HO fluorescent lamps producing 10,000 lumens of light into a mobile dolly cart style platform. This configuration allows operators to wheel this light fixture into position next to the target or lay it flat to provide illumination beneath the target.

This explosion proof light and dolly cart offers an excellent lighting solution for operators who need illumination in unusual areas where traditional fixed mount lighting is obstructed or cannot effectively reach

EPLCD-48-2L Explosion Proof Light Fixture U.L. Ratings
UL Listing: United States - Canada Class 1 Division 1, Groups C and D
Dimensions: W-11.25"  L-52 "   H-8.5" Class 1 Division 2, Group A,B,C,D
Total Unit Weight: 65Lbs UL 595 Outdoor Marine Type (Saltwater)
Total Watts: 108 watts* UL 844, 924
Voltage: Multi- 120V-60hz  220V-50hz  240V-60hz  277V-60hz: UL 1598A Marine Type
Total Lumens: STD-T5-HO Bulbs 10,000 Class II Division 1- 2, Groups E,F,G
Lamp Life Expectancy: STD-T5-HO Bulbs 12,000 Hours UL Certified Canadian Approval Standards
Efficiency: STD-T5-HO Bulbs 92 Lumens per Watt UL listed for Paint Spray Booths*
Operating Temp Range: T6 Rated* -30 C to 70 C
Minimum Operating Temp: -30 C
Maximum Case Temp: 90 C
Beam Angle: N/A
Color Temp: 5000K- T5-HO Bulbs
Mounting: Portable Dolly Cart with Wheels
Optional Voltages: 12 VDC, 24 VDC, 347 Volts, 480 Volts
