Explosion Proof Light - Portable Cart -18/24 Inch - 400 Watt Metal Halide - WITH Flange Mount Option

Jan. 24, 2013

The EPL-TL-C-F Explosion Proof Portable Tank Light WITH Manhole Flange Mount Option from Magnalight is rated Class 1 Division 1 Groups C & D and uses a 400 watt metal halide lamp to produce 75,000 lumens of light capable of illuminating 20,000 square feet of work area. This light is configured to also provide innovative flange mounting, allowing users to hang the lamp fixture from openings and operate it as overhead lighting.

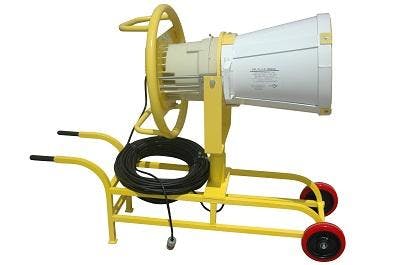

The EPL-TL-C-F explosion proof portable tank light is U.L. approved Class 1, Division 1 for Groups C and D and provides 20,000 square foot of coverage with a 75,000 lumen light output. This unit consists of a 400 watt metal Halide lamp mounted on top of an aluminum cart with solid rubber wheels and provides a portable and easily mobile source of hazardous location illumination. Often simply referred to as a “tank light”, this unit is considered universal due to its ability to be passed through any conventional manhole such as those found in petrochemical containers and ship storage tanks. This unit is available in 18" and 24" diameter versions and is considered a universal tank light as it can be easily passed through most conventional manholes and entryways 18” to 24" or larger in size.

To provide added versatility to the upper cage light portion of this tank light, we developed a flange mount option that enables operators to mount the light head in a suspended position from an overhead man way. In this way, the light is similar to the functionality of an overhead light in a warehouse, illuminating the entire tank. The flange wraps around the edges of the man way and the light is mounted to the flange assembly via an included threaded brass rod. Developed specifically for a petrochemical client, this solution has been field tested extensively.

EPL-TL-C-F Explosion Proof Tank Light w Flange MountQuick Summary/Approvals
UL Listing: United States Class 1 Division 1, Groups C and D
Dimensions: 17 7/8" Light head Class 2 Div 1 & 2, Groups E, F, G
Weight: 135 Lbs Class 3, Division 1 & 2
Total Watts: 400 watts Confined Area Suitable
Voltage: Configurable 120 volts @50/60hz or 230/240 VAC 400 Watt Metal Halide
Operating Temp Range: T3B Rated UL Certified U.S. Standards
LED Lamp Life Expectancy: 20,000+ Hours (Metal Halide Average) 75,000 Lumens- 20,000 Sq Ft Coverage
Mounting: Non Sparking Aluminum Cart, ECP1523 Class 1 explosion proof plug
Wiring: 250 feet 14/3 SOOW Cord- ECP1523 Explosion Proof Plug T3B Temp Rating
