Explosion Proof Light - Base Stand Mount - 24 Inch 400 Watt Metal Halide - 250ft Cord - C1D1

Jan. 24, 2013

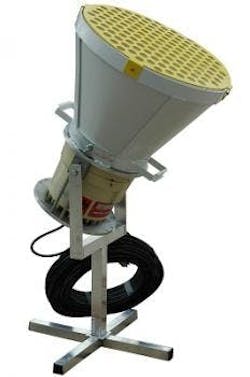

The EPL-24BS-1X4-250 Explosion Proof Portable Base Stand Tank Light from Magnalight is rated Class 1 Division 1 Groups C & D and uses a 400 watt Metal Halide light head to produce 36,000 lumens of light capable of illuminating an area 20,000 square feet in size.

The EPL-24BS-1X4-250 is an aluminum base stand mounted explosion proof tank light and provides 20,000+ square feet of work area coverage with 36,000 lumens of light output. This portable tank light has a removable light head measuring 23 7/8 inches in diameter so it can fit into 24 inch man ways for cleaning vessels in the petrochemical industry or cleaning out fuel cells in the marine industry. The metal halide lamp on this unit produces a wide flood pattern of light capable of reaching 200 feet in length that is ideal for illuminating enclosed areas such as tanks and containers and is suitable for hazardous locations where flammable vapors and gases may be present.

PL-24BS-1X4-250 Explosion Proof Base Stand FixtureQuick Summary UL Listing: United States Class 1 Division 1, Groups C and D Dimensions: 23 7/8" Light Head Class 1 Division 2, Weight: 75 Lbs ECP1523 Class 1 plug Total Watts: 400 watts UL Certified U.S. Standards Voltage: 120V - 240V Lamp Lumens: 36,000 Lamp Life Expectancy: 20,000 Hours Mounting: Non Sparking Aluminum Base Wiring: 250 feet SOOW Cord - Explosion Proof Straight Blade Plug
Operating Temp Range: T3 A Rated
Beam Lux: 8500@ 1 Meter 1250@ 3 Meters
