Magnalight Power Distribution Substation - 45KVA - 125A Main - 12 X 120V Outlets - 1 X 208Y Hubbell

Jan. 24, 2013

Made in the USA

This Magnalight Power Distribution Substation converts 480 VAC three phase primary electrical current to three phase 208Y AC and 120VAC single phase on the secondary. This heavy duty power distribution system includes a 60 amp 3 phase non-fusible safety switch on the main for incoming 480V three phase power. This model is designed for use for both linear (motor) and non-linear loads (lighting, computers, etc.). For that reason, we deliver 120V and 208Y on the secondary and provide a nuetral.

The MPD-45K-125MP-6-208-12X120-1X60 portable power transformer substation provides a safe and reliable way for operators in industrial settings to tap into and utilize power sources independently of the work area. This unit provides an effective power distribution system for operators performing plant turnarounds, maintenance and cleaning in hazardous areas, equipment installations and repairs, and any activities requiring an alternative to native power sources.

This portable transformer is designed to accept 480v 3-phase power via a 75 foot 6/4 SOOW cord, which it then steps down to 120/208Y VAC with a 45KVA transformer. The power distribution system on this portable substation makes 120VAC available via twelve 20 amp, 120 Volt GFCI outlets and 208Y 3-phase available via one Hubbell Leviton 460R9W 60 amp 250V 3-phase, 3P 4W outlet.

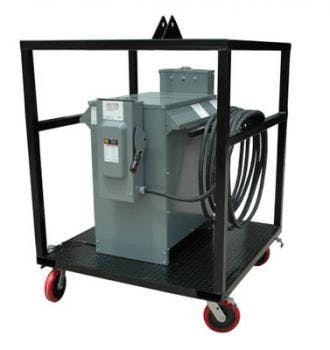

MPD-45K-125MP-6-208-12X120-1X60 Power Distribution Substation
Line In: Three Phase 480 VAC with 6/4 SOOW
Disconnnect: 60 amp, 3 phase Safety Swith (Disconnect)
Outlets: 12 GFCI Protected 20 amp, 120 Volt, weather protected receptacles and 1 Leviton 460R9-W 240V 3 pole 60 amp
Load Center: 125 amp Main Breaker, NEMA 3R , 10 X 20 amp, 125 Volt 1 pole breakers and 1 X 60 amp, 240V 3P breaker
Transformer KVA: 45
Dimensions: W-48" X L-48" X H-48"
Wiring: 75' 6/4 SOOW Line Power Cord with 100A Safety Switch
Transport: 6/8 inch locking polyurethane casters
Ground: Mechanical Ground
Weight: 550lbs
