Power Substation - 15 KVA - Converts 480V to 120VAC and 240V Outlets with GFCI - 30A Feed Thru -30a

Jan. 24, 2013

Made in the USA

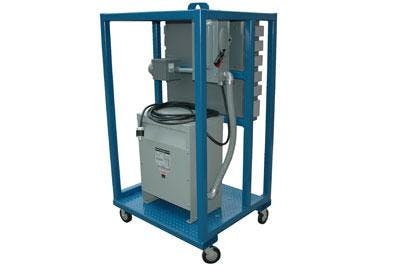

The Magnalight MGS-15KVA-120-240-30AFT heavy duty power transformer substation converts 480 VAC single phase or three phase electrical current to single phase 120V AC and 240V AC. This unit provides operators the ability to safely tap into and distribute 480VAC power from a variety of sources including generators and direct grid power. Includes ADR3034 30 amp receptacle and ACP3034 30 amp plug for feed through.

The MGS-15KVA-120-240-30AFT transformer provides a safe and effective way for operators in industrial settings to tap into and utilize power sources independently of the work area. This unit provides an effective power source for operators performing plant turnarounds, maintenance and cleaning in hazardous areas, equipment installations and repairs and any activities requiring an alternative to native power sources. This unit is designed to operate with 480 VAC which it then steps down to 120 and 240 VAC. This transformer makes 120VAC available via 10 GFCI protected receptacles and 240VAC available via two GFCI protected 240VAC outlets. Also included with this unit is 25 feet of SOOW cord with an ACP3034 30 amp plug and a ADR3034 30 amp receptacle to allow operators a feed through power option for welding substations or similar applications.

MGS-15KVA-120-240-30AFT Power Transformer
Line In: 480 VAC Single Phase
Line Out: 120VAC - 240VAC Single Phase
KVA: 15
120 VAC Outlets: 10 GFCI Protected Receptacles
240 VAC Outlets: 2 GFCI Protected Recptacles
Protection: GFCI Outlets, Onboard Circuit Breakers
Feed Through: ADR3034 30A receptacle, 25'SOOW Cord and ACP3034 30A plug
Mounting: Skid Equipped, Powder Coated Steel Frame
Dimensions: 36"W X 36"D X 36"T
