Power Substation - 30 KVA - Converts 480V AC to 10 120V AC Outlets and Two 208Y AC Outlets with GFCI

Jan. 24, 2013

Made in the USA

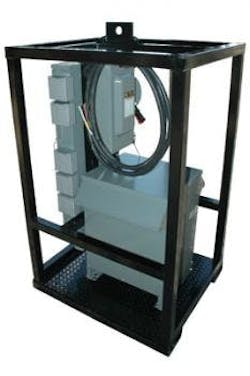

The Magnalight MGS-30KVA-12O heavy duty power transformer substation converts 480 VAC single phase or three phase electrical current to single phase 120V AC and 240V AC. This unit provides operators the ability to safely tap into and distribute 480VAC power from a variety of sources including generators and direct grid power.

This model is designed for use for both linear (motor) and non-linear loads (lighting, computers, etc.).  For that reason, we deliver 120V and 208Y on the secondary and provide a neutral.

The MGS-30KVA-12O transformer provides a safe and effective way for operators in industrial settings to tap into and utilize power sources independently of the work area. This unit provides an effective power source for operators performing plant turnarounds, maintenance and cleaning in hazardous areas, equipment installations and repairs and any activities requiring an alternative to native power sources. This unit is designed to operate with 480 VAC which it then steps down to 120 and 240 VAC. This transformer makes 120VAC available via 10 GFCI protected receptacles and 240VAC available via two GFCI protected 240VAC outlets.

MGS-30KVA-12O Power Transformer
Line In: 480 VAC Single Phase / 480 VAC Three Phase
Line Out: 120VAC - 240VAC Single Phase
KVA: 30
120 VAC Outlets: 10 GFCI Protected Receptacles
240 VAC Outlets: 2 GFCI Protected Receptacles
Protection: GFCI Outlets, Onboard Circuit Breakers
Mounting: Skid and Lifting Eyelet Equipped Steel Frame
Wiring: 20' Line Power SO Cord
Disconnnect: Fused ON/OFF Disconnect Switch
Dimensions: 36"W X 30"D X 56"T
