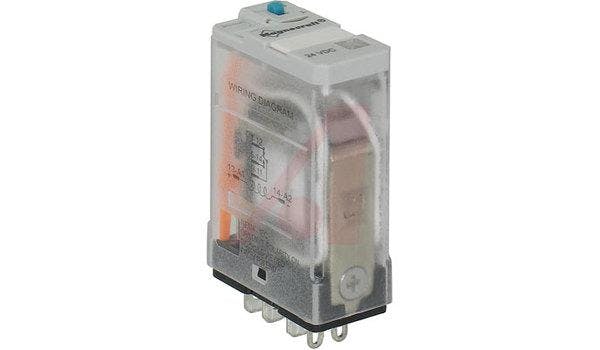

Relay;E-Mech;Power;SPDT;Cur-Rtg 20A;Ctrl-V 24DC;Vol-Rtg 120, 277/28AC/DC
Feb. 20, 2013
Related To: Allied Electronics & Automation
Since the launch of the 700 series relays in 2000, this product line has continuously evolved both functionally and visually. The 700 series product line has the perfect mix of historical Magnecraft relay quality combined with a dynamic arsenal of options. When mated with the Magnecraft sockets and accessories, these RoHs compliant relays provide a complete modular system that will meet all your plugin relay requirements in a package that is both visually appealing and functionally outstanding.
• Offers a “one stop solution” for your power management system.
• Several Contact configuration and materials to meet your individual needs.
• Plug-In switching capabilities from 10 mA to 20 Amps.
• Several Feature Code and Operation combinations available for all budgets.
• Ejector clips, ribbed relay housings and space-saving sockets allow for easy removal from crowded DIN rails.
• Color and appearance designed for high visibility in all environments.
• Wiring diagrams include NEMA and IEC standards.
• Engineering availability allows for customized relay solutions.
Current Rating: 20A | Voltage, Control: 24VDC | Voltage, Rating: 300VAC | Function: Power | Termination: Plug-In | Current, Rating: 20A | Relay Type: Electro Mechanical | Contact Form: SPDT | Standards: UL, CSA, CE, RoHS | • Several Contact configuration and materials to meet your individual needs.
• Plug-In switching capabilities from 10 mA to 20 Amps.
• Several Feature Code and Operation combinations available for all budgets.
• Ejector clips, ribbed relay housings and space-saving sockets allow for easy removal from crowded DIN rails.
• Color and appearance designed for high visibility in all environments.
• Wiring diagrams include NEMA and IEC standards.
• Engineering availability allows for customized relay solutions.
