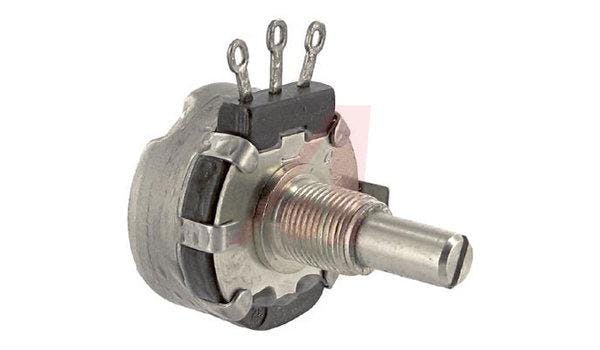

Pot;Cnd Pl;Rest 10 Kilohms;Panel;Linear;Pwr-Rtg 2W;Shaft Dia 0.25In - Allied Electronics Inc
March 9, 2013
Related To: Allied Electronics & Automation
Crafted of the finest materials available to insure long, reliable service. Provides extra long life with very low noise level. Rated 2 watts. Precision construction is completely enclosed. Conductive plastic element. RV4L and 53C2 designate 5?8" screwdriver slotted shaft FMS with 1?2" split locking bushing. RV4N and 53C3 designate 7?8" screwdriver slotted shaft FMS with 3?8" long bushing. 53C1 designates 2" long round shaft FMS with 3?8" long bushing. All have 1?4" diameter shaft. Average Shipping Weight: 4 Oz.Specifications. Resistance Tolerance: 100 to 1 Meg — ±10%; over 1 Meg — ±20%. Rotation: 312° ±3%. End Resistance: Per MIL-R-94. Working Voltage: 500 VDC across end terminals. Linear taper.Type: Potentiometer | Diameter, Shaft: 0.25" | Termination: Lug | Temperature, Operating, Minimum: -55°C | Mounting Type: Panel | Power, Rating: 2W | Number of Turns: 1 | Temperature, Operating, Maximum: +120°C | Tolerance: ±10% | Angle, Mechanical: 312° | Linearity: ±5% | Resistance: 10Kilohms | Rotational Life: 25000Cycles | Dimensions: 1.094"Dia×0.56"L | Material, Element: Conductive Plastic | Taper: Linear |
