High Temperature Butterfly Valve

Jan. 8, 2014

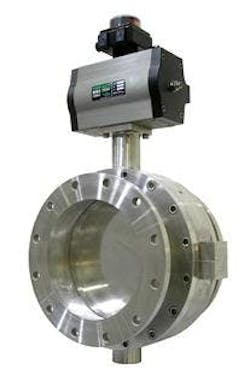

The Posi-flate Series 470 High Temperature Butterfly Valve is an elastomeric seated valve capable of providing a bubble-tight seal at temperatures up to 650° F and pressures up to 200 psi. This valve features a liquid cooled disc and flanges to keep the elastomer seat cool. Together, the flanges and the disc fully encapsulate the seat in the closed position, protecting it from the hot material. The application will determine which of these components need to be cooled. The cooling fluid is directed through the housing to the disc, flows around the disc edge and comes out the other end. The flanges have internal cooling passages with their own individual cooling ports. Standard sizes range from 2” to 16”. The valve materials can be customized to give the best value and performance for an application.
