Relay;SSR;Timing;Multi-Function;SPDT;Cur-Rtg 3A;Ctrl-V 24-240/12-240AC/DC;11 Pin

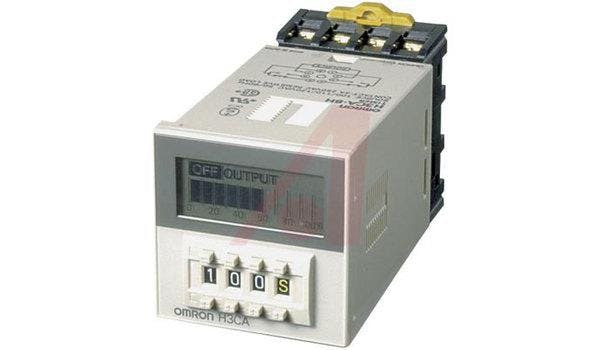

H3CA Series. Digital setting. 8 field selectable operation modes. Ranges of 0.1 sec. to 9,990 hrs. 8-pin, 11-pin or front screw terminals with SPDT or DPDT relay, instantaneous or time limiting outputs. Bar graph elapsed time indication. UL, CSA, SEV. Features:

LCD Time Remaining Bar Graph and Output Status

8 Field Selectable Operation Modes OR On-Delay Only Model

Selectable Time Ranges 0/1 Sec. to 9990 Hr.

Universal Voltage Model (H3CA-A) 24-240 VAC/12-240 VDC

8-Pin or 11-Pin Models Available Specifications:

Supply Voltage: 100/110/120 VAC

Control Output: SPDT — 3 A @ 250 VAC (H3CA-A), (2) SPDT — 3 A @ 250 VAC (H3CA-8H), DPDT — 3 A @ 250 VAC (H3CA-8)

UL, CSA, SEV Approval

Temperature, Operating, Minimum:-10 | Voltage, Rating:24 to 240/12 to 240 VDC | Timer Type:Multi-Function | Relay Type:Solid State | Number of Pins:11 | Mounting Type:Socket | Standards:UL, CSA, CE | Termination:Plug-In | Timing Range:0.1 sec. to 9990 hrs. | Display Type:LCD | Function:Timing | Contact Form:SPDT | Temperature, Operating, Maximum:55 | Current, Rating:3 |
