CIRCUIT; TO-220; 40V; 0.01 %/V (TYP.) LINE REGULATION; 5 MV (TYP.); 1 %; 3

1.2V TO 37V Voltage regulator, 0°C to 125°C, Internally Limited

Output voltage range:1.2 to 37v

Output current in excess of 1.5A

0.1% Line and load regulation

Floating operation for high voltages

Complete series of protections: current limiting, thermal shutdown and soa control

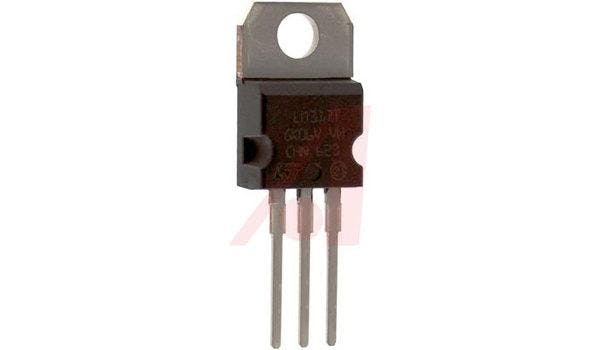

The LM117?LM217?LM317 are monolithic integrated circuit in TO-220, TO-220FP, TO-3 and D2PAK packages intended for use as positive adjustable voltage regulators. They are designed to supply more than 1.5A of load current

Pin Current, Adjustable:50 ?A (Typ.) | Regulator Type:Positive Voltage Out | Voltage, Supply, Rejection Ratio:80 | Package Type:TO-220 | Temperature, Operating, Maximum:125 | Temperature, Operating, Minimum:0 | Power Dissipation:Internally Limited | Regulation, Load:20 | Load Regulation:5 mV (Typ.) | Current, Output:1.5 | Voltage Input-Output Differential:40 | Voltage, Noise:0.003 | Voltage, Output:1.2 to 37 | Regulation, Line:0.02 | Temperature, Stability:1 % | Output Noise, RMS:0.003 % | Temperature, Operating, Range:0 to +125 | Resistance, Thermal, Junction to Case:3 | Type:Voltage Regulator |
