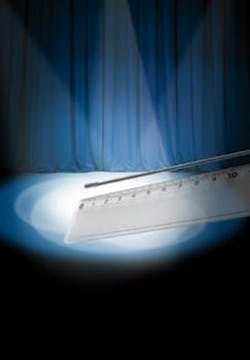

Measuring just 12 mm in length and 3 mm in diameter, the MiniMini is the smallest inductive sensor in the world today. This subminiature construction, which even includes IO-Link, has been made possible by using the latest mixed-signal ASIC technology. This technology reduces component count by combining analog signal processing with digital computing power on a single chip.
Another advantage is that it eliminates the need to use separate analog components. The MiniMini features high switching frequency of 8 kHz and excellent temperature stability.
Operating Distance (mm) 0.8 1
Housing Size ø3 ø3
Protection Class IP68 / IP69 IP67
Connection Type PUR Cable PUR Cable
Max Switching Frequency 8000 Hz 8000 Hz
Operating Voltage Range 10…30 VDC 10…30 VDC
Temperature Range -25…+70?C -25…+70?C
(-13…+158?F) (-13…+158?F)
Mounting Embeddable Embeddable
Output Current ? 100 mA ? 100 mA
