March 31, 2014

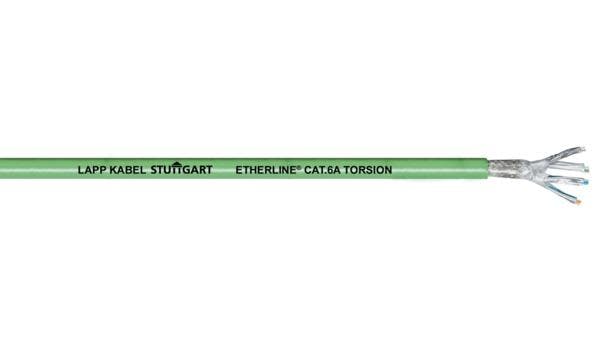

ETHERLINE 4 Pair: CAT.6A TORSION is the first industrial Ethernet cable that meets CAT.6A requirements and can be used in torsion applications. The premium shielding allows reliable, high-speed data transfer. Jacket options include PVC and halogen-free polyurethane.


Recommended Applications: High-torsion stress applications; harsh industrial environments


Application Advantages:

  • Suitable for high-torsion stress
  • Qualified for 10 Gigabit Ethernet
  • Excellent EMI protection
  • Oil-resistant jacket
  • Conforms to PROFINET standard
  • Minimum Bend Radius: 15 x cable diameter
  • Temperature Range:
    • for stationary use: 40 to +80°C
    • for flexible use: -10 to +70°C
  • Nominal Voltage: 125V (not for power applications)
  • Characteristic Impedance: 100? ±15?
  • Color Code: White/blue & blue, white/orange & orange, white/green & green, white/brown & brown
  • Approvals: UL: CMG per UL 444 (2170482)AWM 21576 (2170483)Canada: c(UL) CMG FT4 (2170482)cRU AWM I/II A/B FT2 (2170483)
  • Additional: RoHS
