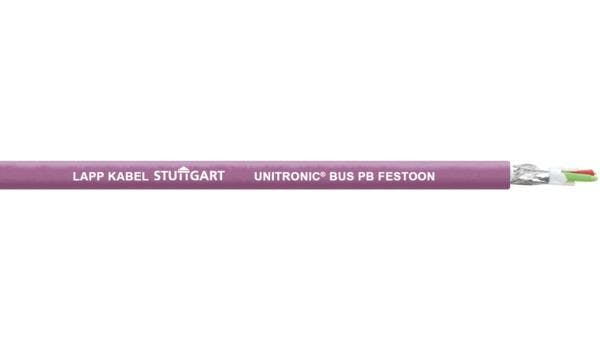

UNITRONIC BUS PB FESTOON

    April 8, 2014
    Related To:
    6667293374c1d40008e3c0fd 830 350

    UNITRONIC BUS PB FESTOON is designed for automation networks requiring fast and reliable data exchange between controllers and field devices.



    Recommended Applications: Festoon applications like cable trolleys; PROFIBUS bus systems DP, FMS, and FIP.



    Application Advantages:

    • CL3 rating for installation in trays
    • Oil-resistant and flame-retardant outer jacket
    • Communication rate up to 12 Mbit/s
    • Sunlight resistant
    • Minimum Bend Radius
      • for stationary use: 4 x cable diameter
      • for flexible use: 9 x cable diameter
    • Temperature Range
      • for stationary use: -40 to +75°C
      • for flexible use: -5 to +70°C
    • Nominal Voltage 600V (not for power applications)
    • Characteristic Impedance 150 ? ± 15 ?
    • Nominal Capacitance 9 pF/ft
    • Color Code Red & green
    • Approvals UL: CMG CL3
    • Canada: c(UL) CMG Communication rate up to 12 Mbit/s
