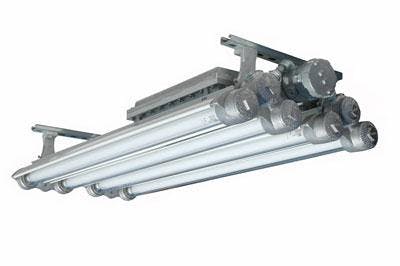

This high bay light fixture is a 4 foot long, 8 lamp, UL listed Class 1 Division 1&2 and Class 2 Division 1 & 2 explosion proof fluorescent light which is also approved for use in paint spray booth applications. This T6 temperature rated fixture comes standard with eight T5HO fluorescent lamps. This fixture is multi-voltage capable with 347 Volt and 480 Volt versions available upon request. The unit provides operators in hazardous locations with a powerful and affordable lighting solution that provides the best explosion proof protection available without sacrificing fixture durability.
U.L. Listing: United States – Canada U.L. Ratings
Total Watts: 432 Class 1 Division 1, Groups C,D
Total Lumens: 40,000 Class 1 Division 2, Groups A,B,C,D
Voltage: Multi – 120V-60Hz, 220V-50Hz, 240V-60Hz, 277V-60Hz Class 2 Division 1-2, Groups E,F,G
(347 Volts and 480 Volts available upon request) UL 595 Outdoor Marine Type
Lamp Life Expectancy: 20,000 Hours (Saltwater)
Color Temp: 5000K or 4100K UL 844, 924
Mouting: Unistruts – Surface Mount UL 1598 Marine Type
Wiring Hub: ½ inch threaded UL Listed for Paint Spray Booths
Operating Temp Rating: T6 Rated UL Certified Canadian Standards
Contact us for special requirements UL Listed for Paint Spray Booths
