Explosion Proof Paint Spray Booth LED Lighting

June 9, 2014

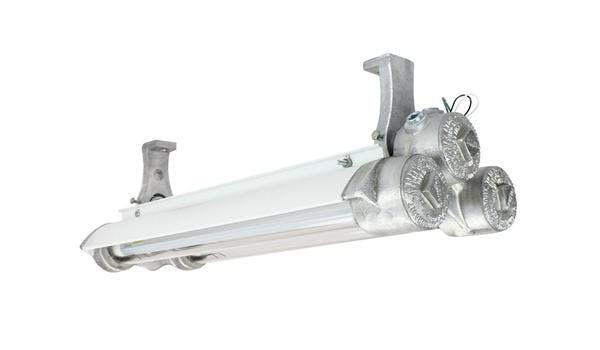

This 2 foot long, 2 LED tube, explosion proof light fixture is ideal for use in locations requiring powerful yet compact hazardous location lighting that will improve overall illumination levels and light quality while reducing operating costs. The unit is equipped with specially designed LED T-series bulbs which produce 15% more illumination at 8 feet as compared to standard T8 lamps. This fixture carries a T6 temperature rating and is U.L. approved Class 1 Division 1&2 and Class 2 Division 1&2.

U.L. Listing: United States – Canada                                                 U.L. Ratings

Total Watts: 30                                                                                     Class 1 Division 1, Groups C,D

Total Lumens: 2,700                                                                            Class 1 Division 2, Groups A,B,C,D

Voltage: Multi – 120V-60Hz, 220V-50Hz, 240V-60Hz,                  Class 2 Division 1-2, Groups E,F,G

277V-60Hz                                                                                             UL 595 Outdoor Marin Type (Saltwater)

LED Lamp Life Expectancy: 50,000+ Hours                                     UL 1598 Marine Type

Color Temp: 5300K-                                                                             UL 844, 924

Mounting:  Bracket Standard – Pendant Optional                       UL Certified - U.S./Canadian Safety

Wiring Hub: ½ or ¾ inch threaded                                                   Standards

Operating Temp Rating: T6 Rated

Contact us for special requirements
