Class 1 Division 2 Fluorescent Light for Corrosion Resistant Requirments

June 9, 2014

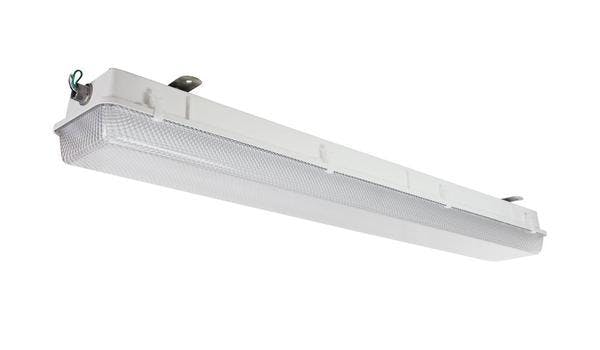

This hazardous area fluorescent light fixture is designed for use in wet areas and saltwater-marine environments where corrosion resistance is critical to equipment longevity and safety. This Class 1 Division 2 rated fixture is constructed of non-corrosive materials including a polyester housing reinforced with glass fiber, a poured in gasket for reliable sealing, and an impact resistant acrylic diffuser. Corrosion resistant stainless steel latches secure the lamp cover to the housing and provide a firm lock against the poured in seal to prevent drips and water intrusion.

U.L. Listing: United States – Canada                                                  U.L. Rating

Total Watts: 108 *Standard T5HO                                                     Class 1 Division 2, Groups A,B,C,D

Total Lumens: 10,000 *Standard T5HO                                            UL 844

Voltage: Multi – 120V-60Hz, 220V-50Hz, 240V-60Hz,                   UL 1598 Marine Type (Salt Water)

277V-60Hz                                                                                               California Title 24 Compliant

Lamp Life Expectancy: 20,000 Hours *Standard T5HO

Color Temp: 5000K *Standard T5HO

Mounting:  Flange Type Stainless Steel

Wiring Hub: ½ inch threaded

Operating Temp Rating: T4A Rated

Bulb Type: T12HO, T8, or T5HO

Contact us for special requirements
