1.8KW Solar Power Generator with Pneumatic Light Tower Mast

June 18, 2014

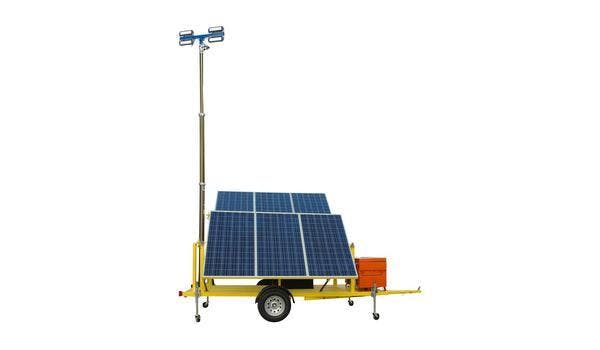

This solar light tower includes 6 solar panels, solar charging system, battery bank and pneumatic mast mounted on trailer with outriggers and removable tongue. This 1.8KW solar generator system replenishes 200 amp hours of usable battery capacity per day, assuming 5.5 hours of peak charging sunlight. The lighting system on this unit is comprised of four 160 watt lamps producing 14,723 lumens each attached to the end of the telescoping light boom.

Panes: (6) 300-Watt Panels

Method of Deployment: Rotating Axis, Hand Winch

Average Charge Capacity: 75 Amps per Hours

System Voltage: 24V

Battery Bank: 8 x 6-volt 200ah Batteries

Battery Capacity: 400ah Total and 200ah Usable

Mast: Pneumatic

Lights: (4) 160 Watt LED Lamps

Lumens: 58,892

Lamp Life Expectancy: 50,000 Hours

Contact us for special requirements
