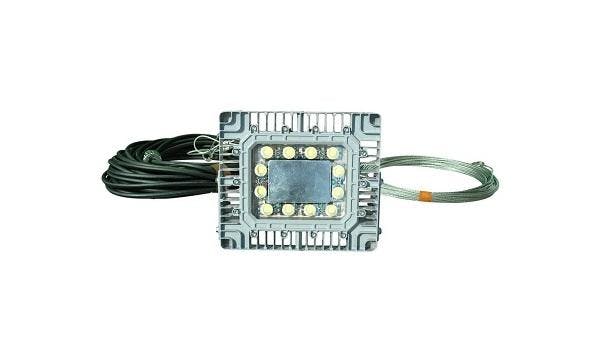

C1D1 Explosion Proof 150 Watt Suspended LED Light Fixture

June 23, 2014
This Class 1&2 Division 1&2 explosion proof light fixture provides 12,000 of high quality light while drawing only 150 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install.

Lamp Type: LED                                                                         Ratings/Approvals

Total Watts: 150                                                                        Class 1 Division 1&2, Groups C,D

Total Lumens: 12,000                                                               Class 2 Division 1&2, Groups E,F,G

Color Temp: 6000K                                                                   Class 3

Operating Temp Range: T5 Rated -50C to 85C                   cETL Certified to UL844 and C22.2 Standards

Lamp Life Expectancy: 60,000+ Hours                                  Paint Spray Booth Approved

Mounting: Swivel Mount with Safety Cables                     DLC Approved

Voltage: Multi – 100-277V AC, 50/60Hz

Wiring: 100ft SOOW Cable with EXP Plug

Contact us for special requirements
