Explosion Proof Ultraviolet Fluorescent Light Fixture

June 23, 2014

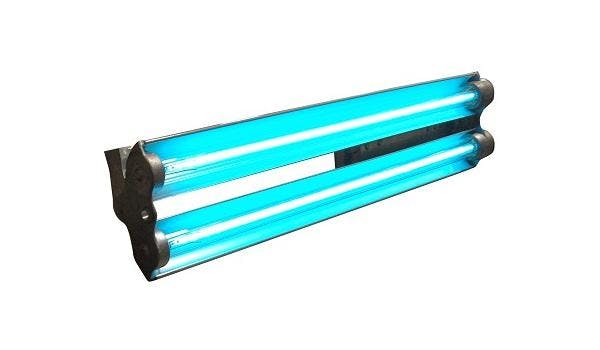

This fixture is a 4 foot long, 2 lamp, UL listed Class 1&2 Division 1&2  explosion proof fluorescent light that emits light in the ultraviolet spectrum. The EPL-48-2L-UV is made to order and can be configured to produce UVA, UVB or UVC light which is typically used for curing coatings or adhesives, pest management or in germicidal applications. The lamps are protected by heat and impact resistant Pyrex tubes and the fixture is constructed of copper free aluminum alloy.

U.L. Listing: United States – Canada                                                             Ratings/Approvals

Total Watts: N/A*                                                                                             Class 1 Division 1, Groups C,D

Total Lumens: 7,120                                                                                          Class 1 Division 2, Groups A,B,C,D

Color: Ultraviolet – 400Nm-315Nm, 315Nm-280Nm, 280Nm-100Nm   Class 2 Division 1&2, Groups E,F,G

Lamp Life Expectancy: N/A*                                                                            UL 844, 924

Operating Temp Range: T6 Rated                                                                   UL 1598 Marine Type

Mounting: Bracket Standard – Pendant Optional                                       UL 595 Outdoor Marine Type (Saltwater)

Voltage: Multi – 120V-60Hz, 220V-50Hz, 240V-60Hz, 277V-60Hz            California Title 24 Compliant

Wiring: ½ Inch Threaded Hub

Contact us for special requirements
