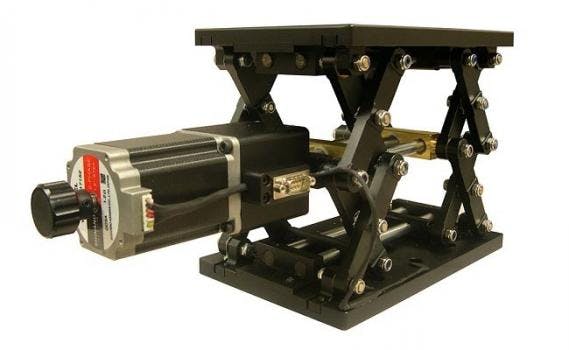

AT10-120 Motorized Vertical Lift Stage

The AT10-120 Motorized Vertical Stage is a high-resolution, low-profile, high-load vertical lift stage that can be easily integrated into almost any application. The large 8.7 x 5.5 in. (221 x 140 mm) drilled and tapped platform has a vertical travel of 4.3 in. (109 mm).



The twin lead (right and left-hand thread) precision ground screw and six guide rails provide smooth, flat, vertical motion, and high resolution to 5 µm and 0.50 µm, and repeatability is 10 µm at travel speeds of 5 mm/s.



Applications include testing, inspection, assembly, sampling, laser drilling, and machining in a broad range of industrial, medical, semiconductor, and research facilities.



The AT10-120 low-profile vertical stage is constructed of black-anodized aluminum alloy and weighs just 13 lb. (6 kg). The 2-phase NEMA 23 Stepper and inclined plane and scissor lift concept offers a higher load capacity of 33 lb. (15 kg) compared to vertically mounted stages, and without the concern for cantilevered effects the moving platform has access from all four sides and the base plate has easy to access holes for mounting.

Range of Travel

 4.3 in. (110 mm)

Table Size 8.7 x 5.5 in. (221 x 140 mm)Actuator Type Grinding screwTravel Guide

 Slide rail

 Two-Phase Stepper Motor  Typical phase resistance  2.3 Ohms, Bi-directional  Typical phase current 2 ADB-9 Male ConnectorPin assignment and description 1 5V DC 2 low-end limit switch 3 high-end limit switch 4 common 5 not connected 6 stepper motor phase A+ 7 stepper motor phase A- 8 stepper Motor phase B+ 9 stepper motor phase B-Base Material Aluminum alloySurface Treatment Black anodizedLoad Capacity 33 lb. (10 kg)Weight 13 lb. (6 kg)

• Inclined plane concept delivers 4.3 in. (110 mm) of vertical motion in a low profile
• Higher load capacity compared to vertically mounted stages
• Access to the moving platform from any side
