CANbus Controller Based on Rasberry Pi 2 B Board

Oct. 2, 2015

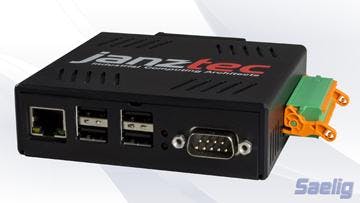

The compact, fanless embedded CANbus controller based on the Raspberry Pi 2 B board, but with Janz Tec add-ons to implement additional features needed for industrial applications. Intended for wall or DIN-rail mount, the emPC-A/RPI includes extra features that expand the usefulness of the Raspberry Pi computer, including a CANbus interface. The compact 24-pin multi-connector provides access to many of the emPC-A/RPI interfaces such as SPI, I2C, 8 x digital I/O lines, RS232/485, etc. Two USB interfaces are also available on the connector panel.
  • Size: 4x 3.8 x 1.2 in.
  • Weight: 0.9 lb
  • Powered by a 900MHz quad-core ARM Cortex-A7 BCM2836 processor with 1GB SDRAM
  • Built-in interfaces include: HDMI graphics, 10/100 Mbit/s Ethernet, 4 x USB 2.0, Micro SDcard socket, CAN, serial debug (9-pin D-SUB), an RS232/485 Serial port, RTC with battery backup, 4 x digital outputs, and  4 x digital inputs (isolated from logic)
  • based on the Raspberry Pi 2 B board
