30W DC/DC Converter Offers Low Noise

Nov. 9, 2015

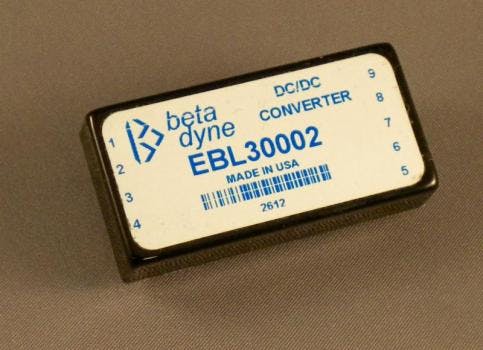

EBL30002 30W Low Noise isolated converter has an output of 5 vdc and a 2:1 input voltage range from 18 v to 36 v.

Output synchronous rectification followed by a very low dropout linear regulator makes it possible to achieve up to 86% efficiency and less than 20 mV output noise. Standard features include input undervoltage protection , external synchronization, thermal protection and 15,00 vdc Input/Output Isolation. The converter is packaged in a 1 x 2 x .45-in. metal case with six-sided shielding and features industry-standard pinouts.

Applications include: Process Instrumentation, Medical Equipment, Communications, and Data Acquisition and Control Systems

  • Efficiency to 86%
  • Ultra Low Output Ripple/Noise
  • Output Sensing
  • Regulation to +/-0.5%
  • Output Synchronous Rectification
  • 1500VDC Input/Output Isolation
  • 2:1 Input from 18-36VDC
  • Industry-Standard Pinout
