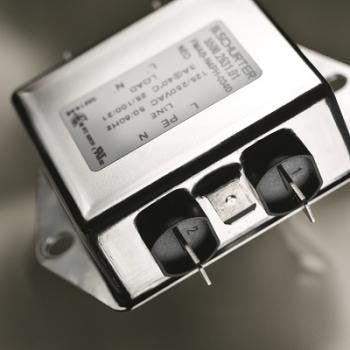

The P and Q series of single-phase filters, for current levels from 1 to 60 amps at 250 vac, have an extended temperature range of -40 to 100°C. Filter design P contains two standard X capacitors for high symmetrical attenuation, while Design Q offers one X capacitor for good symmetrical attenuation. Both are suitable for applications used in harsh environments.
- 250 VAC single-phase block filter
- Single-stage filter with good or standard attenuation
- Filter available ins standard or medical M5 / M80 version
- Rated currents: 1, 3, 6, 10, 12, 16, 20, 30, 60 A (ENEC / UL / CSA) at 40 °C
- Operating Temperature: -40 °C to 100 °C
- Chassis: Screw-on mounting, from top
- Quick connect terminals 1 – 20 A, nut and bolt 30, 60 A, optional wire leads
