Intelligent Electrohydraulic Mobile Valve

July 6, 2016

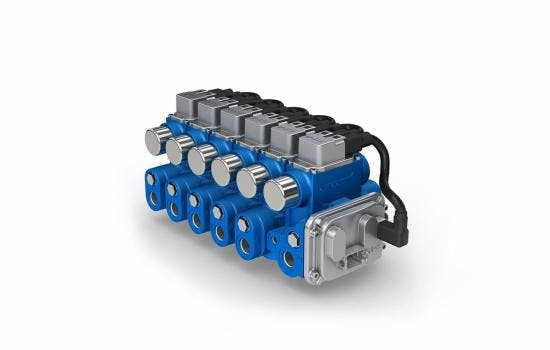

CMA Advanced CAN-enabled electrohydraulic mobile valve, available with rated flow of 90 or 200 lpm, features on-board electronics and sophisticated software algorithms to greatly surpass industry standards for intelligence, capabilities, dynamics and control and helps manufacturers deliver the cutting edge machine performance.

Intelligent features include improved controllability via easily configured advanced control algorithms, with independent metering, which allows for independent meter-in and meter-out.

Real-time diagnostics shared from on-board sensors monitor pressure, temperature, position and flow, helping to detect and troubleshoot issues as they arise.

  • Rated flow of 90 or 200 liters per minute
  • Improve controllability using advanced control algorithms which can be easily configured, on the spot, to a customer’s machines specific setup. Additionally, with independent metering, which allows for independent meter-in and meter-out, there is smooth and efficient load control under any load conditions
  • Enable new capabilities with the ability to seamlessly switch between velocity and force control modes
  • Faster commissioning is made possible by a software interface which enables users to set up and tune the valve rather than swapping parts as seen in other conventional mobile valves
  • Real-time diagnostics are shared from on-board sensors which monitor pressure, temperature, position and flow, helping to detect and troubleshoot issues as they arise
  • Hose burst detection prevents costly spills by monitoring flow to and from the service and closing the service if a leak is detected
  • Minimize downtime with a limp mode that allows end users, in the event of sensor failure, to work at a reduced rate until the machine can be serviced
