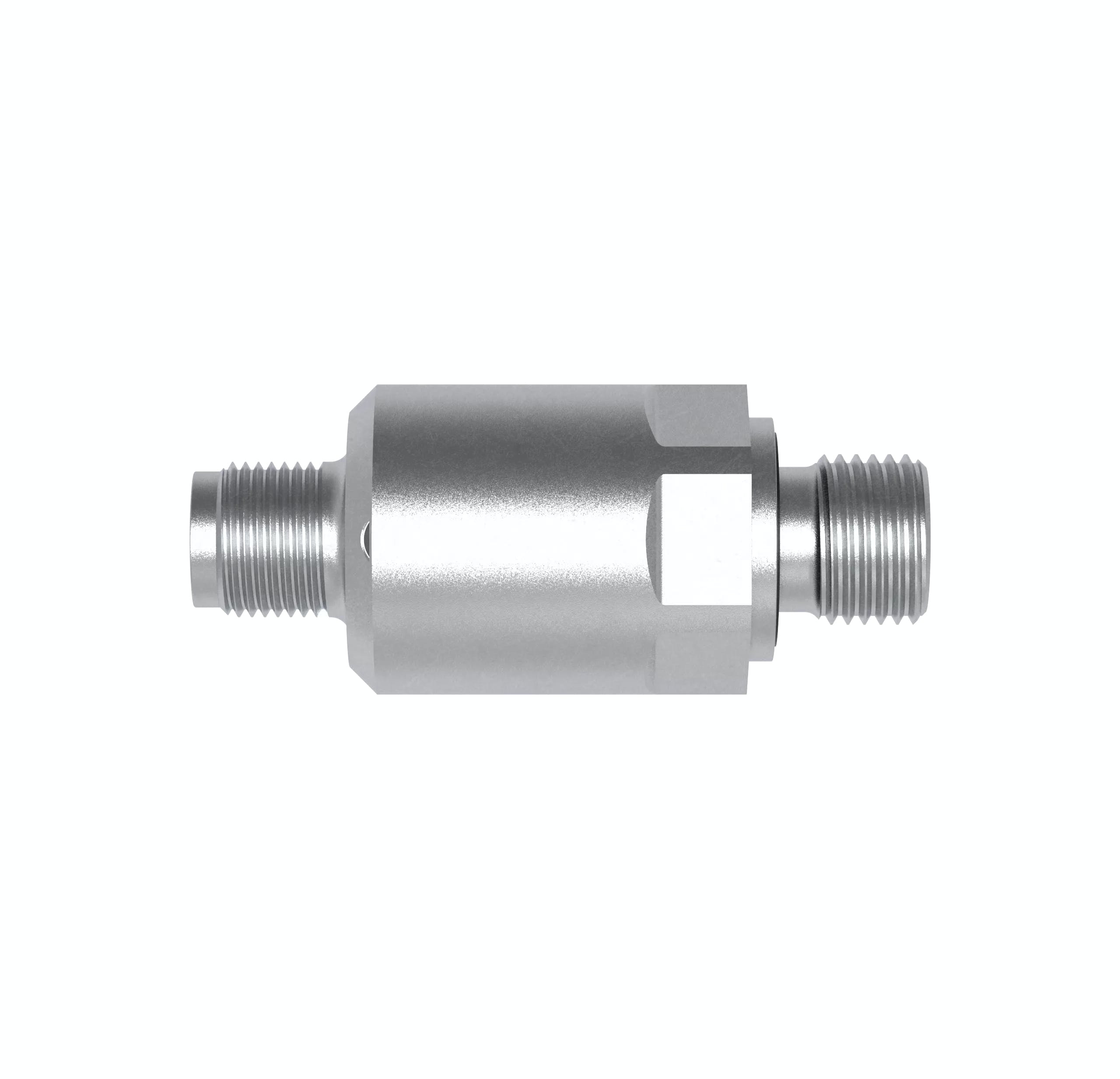

A compact, mechanical pressure sensor ideal for continuous industrial use, the P.Trace is widely used to monitor and control the pressure of liquids and gases in machinery, equipment, and other processes.
It has a small but dependable housing, an analog output, and a ceramic measuring cell. Since it's a mechanical sensor it doesn't require a power source, making it suited for almost any application as well as for continuous use.
Electrical connection is via M12 x 1, 4 pole and has an operating voltage of 9 to 30V DC. It can monitor pressure ranges from 0 to 145 psi up to 0 to 8,700 psi. Available with different seals: NBR, FKM, EPDM.
| Weight | 191 g (0.2 kg) |
| Short-Circuit/Reverse Polarity Protection | Yes |
| Long-Term Drift | ≤0,1% FS/a |
| Material | Stainless Steel 316L |
| Measuring Range | 0 to 600 bar |
| Process Connection | G1/4 in. external/internal thread |
| Response Time | <3 ms |
| Protection Class | IP65, IP67, IP68 |
| Output | Analog Output 0 to 10 V, 4-20 mA |
| Operating Temp. | -13 to 176°F (-25 to 80°C) |
| Repeatability | ± 0,2% FS |
| Operating Voltage | 14 to 30V DC |
| Current Consumption | <25 mA |
| Electrical Connection | M12 4-pole |
| EMV/Interference Emission | EN61000-6-4 |
| EMC/Interference Immunity | EN61000-6-2 |
| Accuracy | ±0,5% FS |
MP-SENSOR GmbH
Distributor info: |
| Norstat now offers the MP-Sensor P.Trace Industrial Pressure Sensor. Contact Norstat for additional information, pricing, and availability. |
